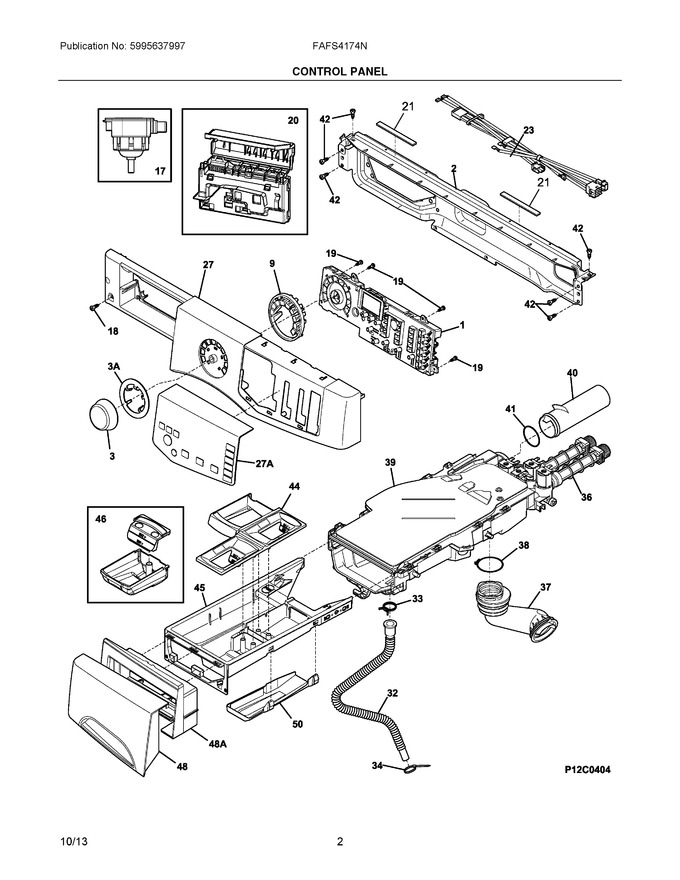

02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	137260870		Control Board, Printed Circuit, With Housing				$ 236.16
2	134887400		Bracket, Control Panel, Mounting				$ 92.61
3	137286500		Knob, Control				$ 79.28
9	137286600		Pipe, Cycle Light				$ 50.98
17	134762010		Switch, Pressure				$ 47.38
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
19	134402900		Screw, Phillips, 6-19 X 0.650				$ 33.08
20	134959102		Control Assembly, Main Electronic				$ 317.29
21	134407900		Dampener, Vibration				$ 18.90
23	137288800		Wiring Harness, Main				$ 202.86
27	137502610		Panel, Control Console, White, Decorated				$ 195.20
32	134625510		Hose, Disp-to-bellows				$ 61.37
33	134737300		Clamp   (Replaces: 131306216)				$ 22.37
34	5304464772		Cable Tie, 5.60 Inch, Plastic   (Replaces: 5303321209)				$ 11.81
36	134637810		Valve Water, Dispenser, No Thermister			Immediately	$ 200.17
37	134372300		Hose, Disp-to-tub			Immediately	$ 64.80
38	134372400		Clamp, Tub Hose				$ 71.66
39	134964010		Housing, Dispenser, W/valve, Cover				$ 185.22
40	134372100		Tube, Disp-to-overflo				$ 50.87
41	134372200		O-ring, Overflow Tube				$ 15.27
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
44	134638310		Drawer Cover, With Graphics				$ 29.66
45	5304505336		Drawer, Dispenser   (Replaces: 134638200)			Immediately	$ 66.19
46	137143800		Cup, Dispenser, Liquid				$ 30.52
48	137516610		Handle/drawer Assy, White				$ 133.70
50	134638400		Conveyor, Dispenser, Lower				$ 22.64
27A	137502510		Panel, Display, White, Decorated				$ 205.80
3A	137296900		Lens, Cycle Indicator				$ 21.89
48A	137286000		Frame, Dispenser, Drawer				$ 45.31
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 56.71
NIA	134178901		Screw, 8-18ab X 0.455				$ 16.54
