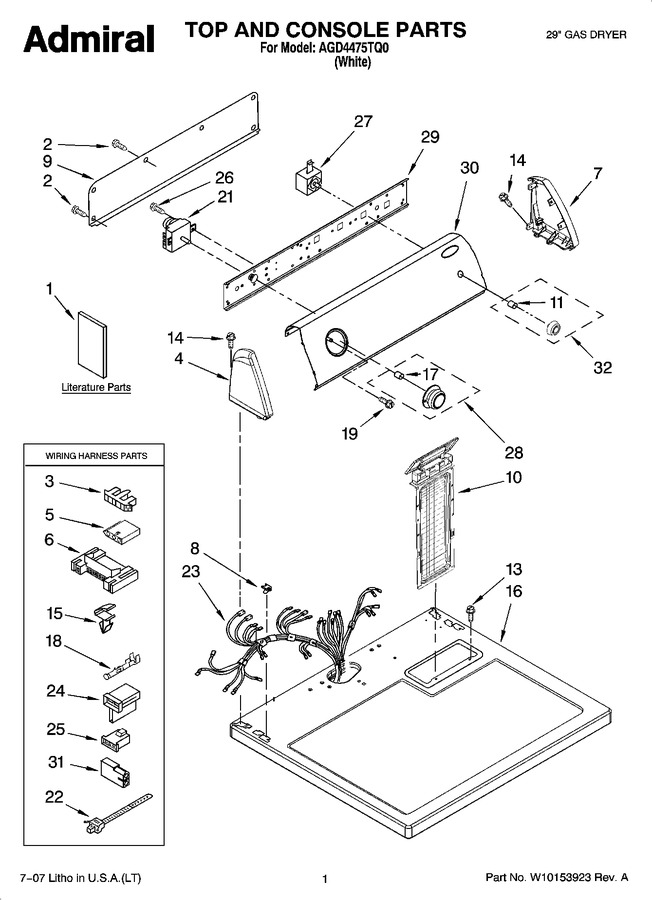

01 - Top And Console Parts


02 - Cabinet Parts


03 - 8318272 Burner Assembly


04 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10089174		Sheet, Cycle Feature		Appelez-nous	-
1	W10088774		Guide, Use & Care		Appelez-nous	-
1	W10088971		Instructions, Installation		Appelez-nous	-
2	WP693995		Screw, Hex Washer Head   (Replaces: 693995)			Immediately	$ 7.55
3	3397269		Connector-timer				$ 25.55
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 21.22
6	3395683		Connector, Motor			Immediately	$ 54.45
7	8271359		Cap, End (r.h.)		Appelez-nous	-
8	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 7.76
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
11	WP8536939		Spring-clip Knob   (Replaces: 8536939)			Immediately	$ 8.20
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
14	WP388326		Screw, Console   (Replaces: 388326)				$ 9.29
15	WP3394427		Clip-harness   (Replaces: 3394427)				$ 8.18
16	8557930		Top		Appelez-nous	-
18	WP94614		Terminal   (Replaces: 94614)				$ 8.05
19	3400859		Screw, 8-18 X 7/32   (Replaces: 8533951)				$ 13.88
21	WP8299764		Timer   (Replaces: 8299764)				$ 372.39
22	3391249		Tie, Cable		Appelez-nous	-
23	8299876		Harness, Wiring		Appelez-nous	-
24	WP3403499		Connector (2) Position Gas Valve   (Replaces: 3403499)				$ 6.02
25	WP3403498		Connector, 3 Position (gas Valve)   (Replaces: 3403498)				$ 7.30
26	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
27	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
28	WP8557455		Timer Knob & Dial   (Replaces: 8538953)				$ 59.61
29	8271418		Bracket, Control				$ 57.15
30	W10141666		Panel, Control		Appelez-nous	-
31	717252		Receptacle		Appelez-nous	-
