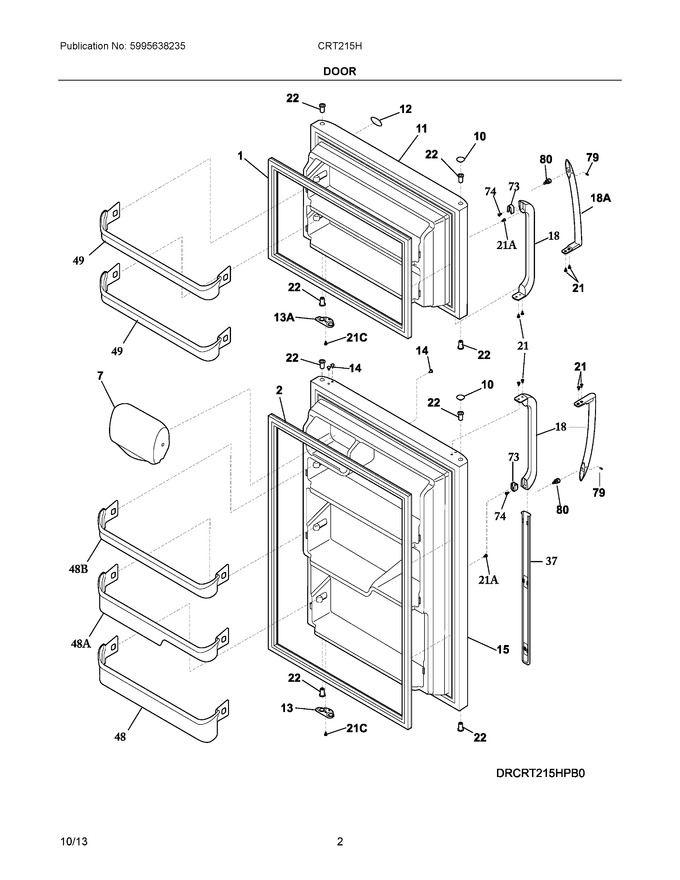

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242193211 | Gasket-frzr Door, Black, Magnetic |
|
$ 207.90 | |||||
| 2 | 242193214 | Gasket-frzr Door, Black, Magnetic |
|
$ 212.06 | |||||
| 7 | 240337712 | Door-dairy, W/o Graphics, Clear (Replaces: 240337703) |
|
Immediately | $ 40.45 | ||||
| 10 | 240381303 | Plug-button, Black, Hinge Brg Hole |
|
$ 77.52 | |||||
| 11 | 240450313 | Door-frzr, Black, Complete Assy |
|
$ 663.97 | |||||
| 12 | 242115801 | Nameplate |
|
- | |||||
| 13 | 240312422 | Door Stop, Black, Refr (Replaces: 240312405) |
|
$ 16.85 | |||||
| 14 | 240494001 | Plug-button, White, Cab Liner Holes |
|
Immediately | $ 20.22 | ||||
| 15 | 240450413 | Door-refr, Black, Complete Assy |
|
$ 570.57 | |||||
| 18 | 218668003 | Handle-door, Black |
|
$ 77.18 | |||||
| 21 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 22 | 5304507147 | Bearing-hinge, Black (Replaces: 240527102) |
|
Immediately | $ 8.43 | ||||
| 37 | 215870636 | Trim-handle, 2.47", Black, W/satin Al Band |
|
$ 76.91 | |||||
| 48 | 240338101 | Bin-door, Pseudo, Bottom |
|
Immediately | $ 58.19 | ||||
| 49 | 240534801 | Rack-door |
|
Immediately | $ 55.13 | ||||
| 13A | 240312415 | Door Stop, Black, Frzr |
|
$ 23.63 | |||||
| 21A | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 48A | 240337901 | Bin-door, Refr |
|
Immediately | $ 57.92 | ||||
| 48B | 240338001 | Bin-door, Pseudo, Gallon, Refr |
|
Immediately | $ 38.84 |
