SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top

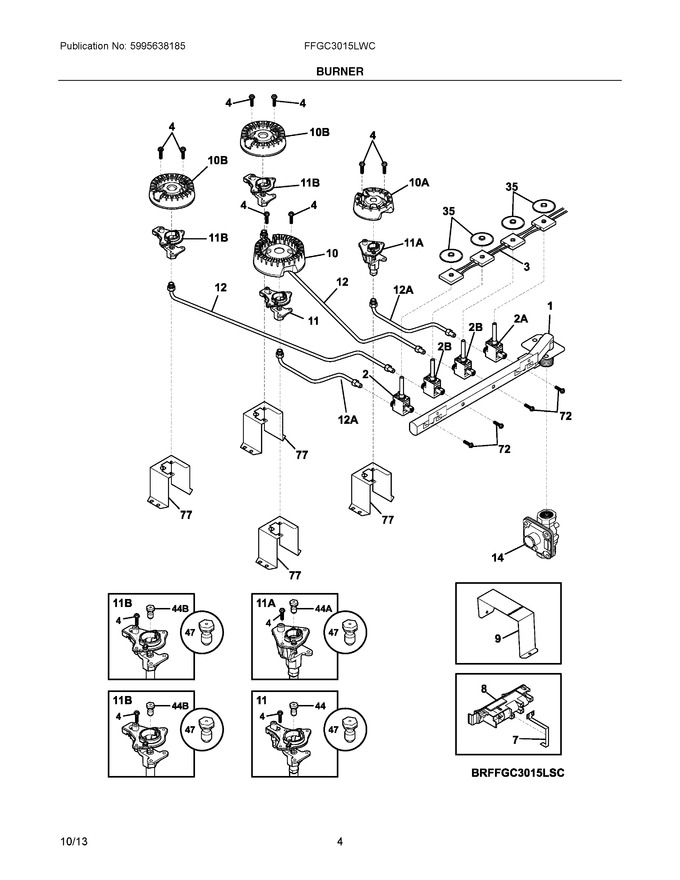

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318177020		Manifold Pipe		Appelez-nous	-
2	316271302		Valve, Top Burner, 12k				$ 151.99
3	807211201		Wiring Harness, W/igntr Switchs		Appelez-nous	-
4	316240600		Screw, Hex Wash, 6-32 X .485   (Replaces: 5304472956)			Immediately	$ 13.48
7	318024201		Bracket, Spark Module				$ 9.08
8	5304505695		Module, Spark   (Replaces: 316135702)			Immediately	$ 75.73
9	318406303		Bracket, Retainer		Appelez-nous	-
10	316438000		Burner, Sealed, 12k				$ 75.34
11	316540702		Ignitor/orifice Assy., Top Burner, 12k, W/holder			Immediately	$ 14.28
12	318560700		Tube, Burner, Lf & Lr, (2)		Appelez-nous	-
14	318122707		Regulator, Pressure   (Replaces: 318122712)				$ 134.66
35	807164301		Bushing, Insulating		Appelez-nous	-
44	316527502		Orifice, Burner, 12k				$ 25.20
47	318565407		Conversion Kit, Lp		Appelez-nous	-
72	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 15.75
77	318192622		Bracket, Burner Mtg, (4)		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 63.00
10B	316558300		Burner, Sealed, 9.5k			Immediately	$ 58.28
11A	316540800		Ignitor/orifice Assy., Top Burner, 5k, W/holder				$ 12.44
11B	316540700		Ignitor/orifice Assy., Top Burner, 9.5k, W/holder				$ 12.39
12A	318560702		Tube, Burner, Rf & Rr, (2)				$ 45.73
2A	316271300		Valve, Top Burner, 5k		Appelez-nous	-
2B	316271301		Valve, Top Burner, 9.5k/12k				$ 169.37
44A	316527504		Orifice, Burner, 5k				$ 25.20
44B	316527500		Orifice, Burner, 9.5k				$ 23.78
NI	5303323140		Screw, Ground, 10-32 X 0.375		Appelez-nous	-
NI	08011955		Screw, 10-24 X 0.375, Square Drive			Immediately	$ 10.40
NI	5304424462		Foam Tape, 1/2" X 14			Immediately	$ 77.52
NI	5303311306		Screw, 8-18 X 0.375, (4)		Appelez-nous	-
NI	318199779		Wiring Harness, Ignitor				$ 129.10
NIA	5303323137		Screw, 8-32 X 1/4   (Replaces: 5303305528)				$ 13.20

    View Diagram in Separate Window       Print Part List
