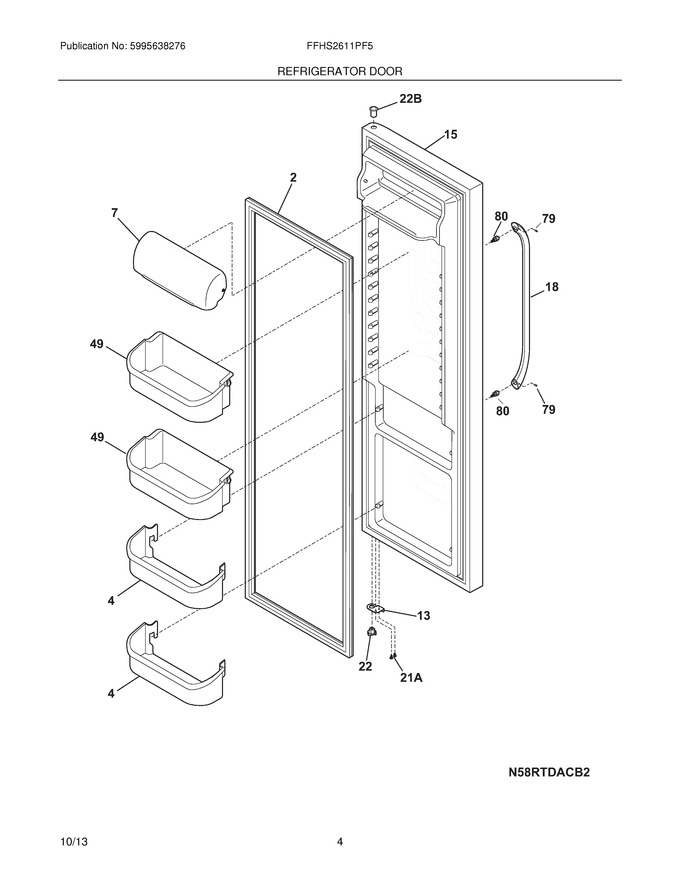

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240323001 | Bin-door,pseudo ,bottom |
|
Immediately | $ 47.57 | ||||
| 7 | 240326203 | Door-dairy |
|
$ 40.37 | |||||
| 13 | 240581905 | Door Stop,black ,ref |
|
$ 66.94 | |||||
| 15 | 807460104 | Refrigerator Door,complete ,stainless |
|
- | |||||
| 18 | 242059301 | Handle-door,stainless ,w/set Screws |
|
$ 219.03 | |||||
| 22 | 242015302 | Bearing-hinge(ref),black ,closer |
|
$ 11.80 | |||||
| 49 | 240356401 | Bin-door,gallon |
|
Immediately | $ 95.15 | ||||
| 79 | 218755405 | Screw-set,10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw-no.10-32 X 3/4,zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 240328404 | Bearing-hinge,black ,upper |
|
$ 25.41 | |||||
| F2 | 241786013 | Refrigerator Door Gasket, Grey, Magnetic (Replaces: 241786005) |
|
Immediately | $ 106.55 |
