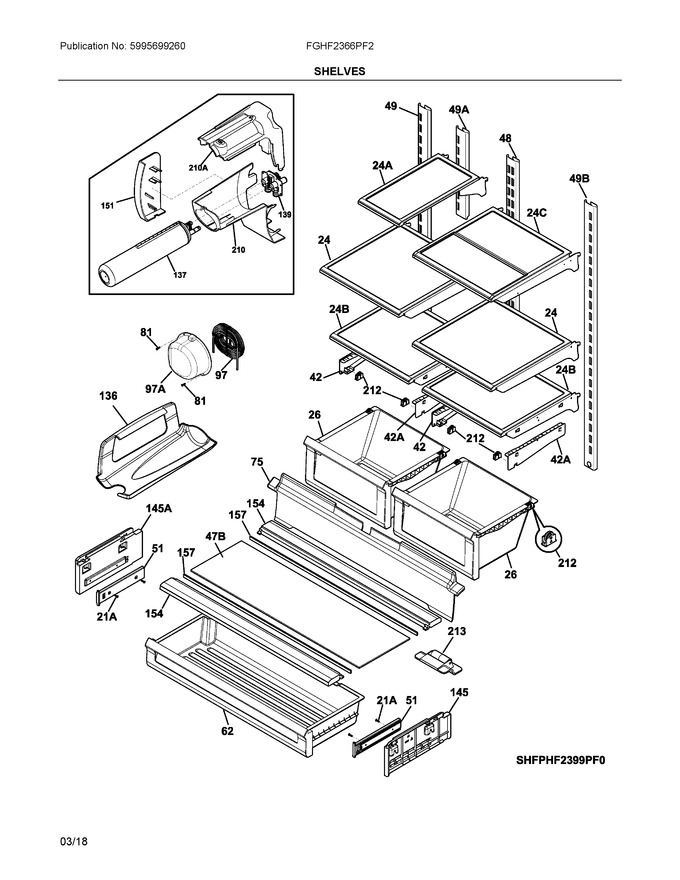

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 242068704 | Shelf, Sliding, Cantilever, "spill-safe |
|
$ 191.94 | |||||
| 26 | 241801804 | Pan-crisper, (2) |
|
$ 274.34 | |||||
| 42 | 242079401 | Support, Crspr Pan Rolle |
|
Immediately | $ 34.65 | ||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 88.99 | |||||
| 49 | 242122202 | Channel-shelf Mtg, Side, Lh |
|
$ 74.81 | |||||
| 51 | 242120001 | Slide-deli |
|
Immediately | $ 184.28 | ||||
| 62 | 242096815 | Pan-deli (Replaces: 242096804) |
|
$ 188.50 | |||||
| 75 | 242072702 | Shield-light, Refr |
|
$ 115.25 | |||||
| 81 | 240383407 | Screw, Truss Hd Quad, #10-16 X .500, White |
|
$ 14.18 | |||||
| 97 | 242082001 | Water Tank, Coil |
|
$ 125.55 | |||||
| 136 | 241657701 | Dispenser-can, White |
|
$ 63.79 | |||||
| 137 | ULTRAWF | Filter-water, Carbon (Replaces: 241791601) |
|
Immediately | $ 116.23 | ||||
| 139 | 242009604 | Base-water Filter (Replaces: 242009601) |
|
Immediately | $ 36.82 | ||||
| 145 | 242120101 | Support, Rail |
|
$ 85.10 | |||||
| 151 | 242069701 | Cover-water Filter |
|
$ 69.16 | |||||
| 154 | 242082401 | Support |
|
$ 76.22 | |||||
| 157 | 241872201 | Beam-crisper Cover |
|
$ 59.83 | |||||
| 210 | 241983816 | Housing-water Filtr (Replaces: 241983805) |
|
Immediately | $ 81.90 | ||||
| 212 | 242236801 | Roller Assembly, Crisper Pan |
|
Immediately | $ 24.43 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 55.13 | |||||
| 145A | 242120102 | Support, Rail |
|
$ 80.33 | |||||
| 210A | 241998303 | Mount-water Filter (Replaces: 241998302) |
|
$ 16.01 | |||||
| 21A | 241953902 | Screw, #8 - 18 X .380, 3 |
|
Immediately | $ 19.01 | ||||
| 24A | 242200502 | Shelf-"spill-safe", Cantilever, 1/4 Width, Flip Up |
|
$ 224.14 | |||||
| 24B | 242068706 | Shelf, Fixed, Spill Safe |
|
Immediately | $ 235.94 | ||||
| 24C | 242235502 | Shelf-"spill-safe", Cantilever, Half Width, Slide Under |
|
$ 268.80 | |||||
| 42A | 242079402 | Support, Crspr Pan Rolle |
|
Immediately | $ 47.89 | ||||
| 47B | 242082304 | Glass, Deli Cover |
|
$ 150.97 | |||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 86.63 | |||||
| 97A | 242220501 | Water Tank, Coil (Replaces: 242082002) |
|
Immediately | $ 110.25 | ||||
| 97A | 242117301 | Cover-water Tank |
|
$ 80.20 | |||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| NI | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 5.06 | ||||
| NI | 242146278 | Label, Energy Guide |
|
- | |||||
| NIA | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NIA | 5304453707 | Screw, Plask, #8-18 X .500 (Replaces: 240363402) |
|
Immediately | $ 17.69 | ||||
| NIA | 241695904 | Screw |
|
$ 16.01 | |||||
| NIA | 5304453707 | Screw, #8-18 (Replaces: 241953901) |
|
Immediately | $ 17.69 | ||||
| NIAA | 242004802 | Foam Strip |
|
$ 6.30 |
