SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

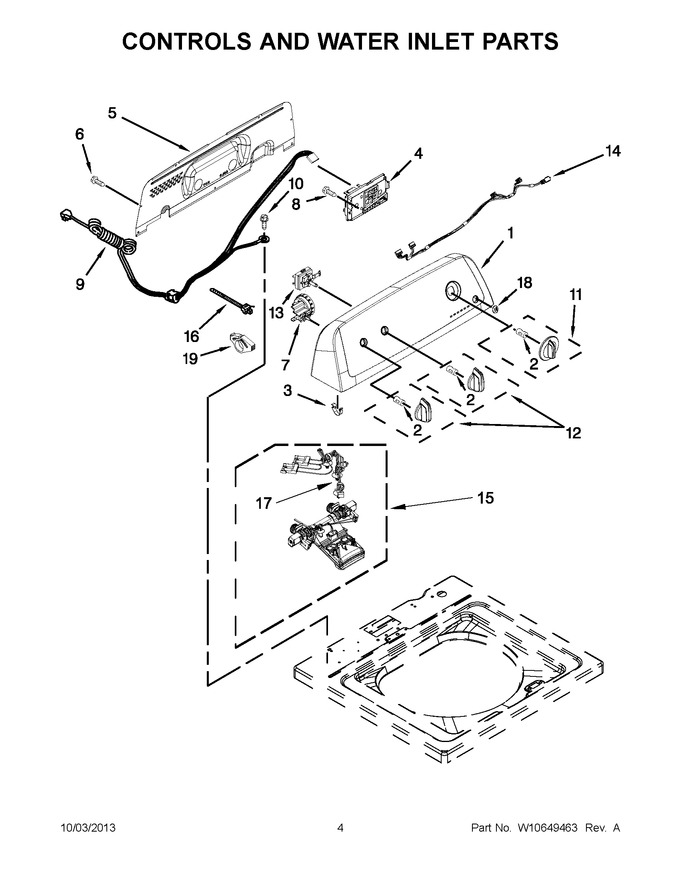

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10468327		Panel, Console   (Replaces: W10468327)				$ 315.07
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W10636057		Control Unit Assembly, Machine & Motor		Appelez-nous	-
5	W10409320		Panel, Console Rear Cover				$ 237.41
6	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
7	WPW10450959		Switch, Water Level   (Replaces: W10450959)				$ 173.93
8	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 9.63
9	WPW10525192		Cord, Power   (Replaces: W10525192)				$ 146.72
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	WPW10711289		Assembly, Timer Knob (white )   (Replaces: W10453946)			Immediately	$ 7.50
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
13	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 179.60
14	W10475254		Harness, Upper				$ 138.47
15	WPW10683603		Inlet Assembly, Water   (Replaces: W10501149)			Immediately	$ 84.60
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
17	W10876654		Harness, Valve   (Replaces: W10423127)				$ 175.43
18	WPW10251309		Push Button, Start   (Replaces: W10251309)			Immediately	$ 68.40
19	WPW10663966		Clamp, Hose   (Replaces: W10348582)				$ 201.83

    View Diagram in Separate Window       Print Part List
