SELECT A DIAGRAM

01 - Cover Sheet

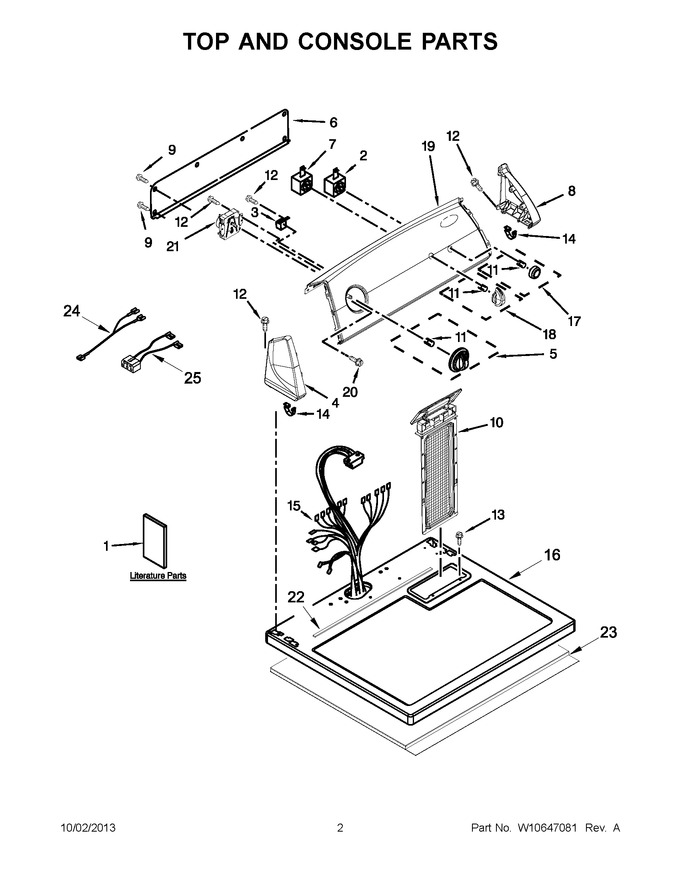

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - W10336852 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576796		Wiring Diagram		Appelez-nous	-
1	W10329763		Instructions, Installation		Appelez-nous	-
1	W10566781		Use And Care Guide		Appelez-nous	-
2	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10251358		End Cap (left) (white)   (Replaces: W10251358)				$ 51.42
5	WPW10327522		Assembly, Timer Knob (grey)   (Replaces: W10327522)				$ 50.97
6	W10103406		Panel, Rear   (Replaces: 8274261)				$ 135.31
7	3405152		Switch, Rotary				$ 131.07
8	WPW10251355		End Cap (right) (white)   (Replaces: W10251355)				$ 51.39
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	8299876		Harness, Wiring (complete)		Appelez-nous	-
16	WPW10225059		Top (white)   (Replaces: W10225059)				$ 250.69
17	W10034770		Assembly, Push To Start Knob (white/metallic)		Appelez-nous	-
18	WPW10327523		Assembly, Control Knob (grey)   (Replaces: W10327523)				$ 55.13
19	W10592518		Console (white)		Appelez-nous	-
20	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
21	WP3977678		Timer Assembly (60 Hz.)   (Replaces: 3977678)				$ 332.54
22	W10316616		Seal, Foam				$ 27.79
23	W10123956		Panel, Dampening		Appelez-nous	-
24	W10203571		Jumper, Push-to-start		Appelez-nous	-
25	3401695		Wire, Jumper (buzzer On/off)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
