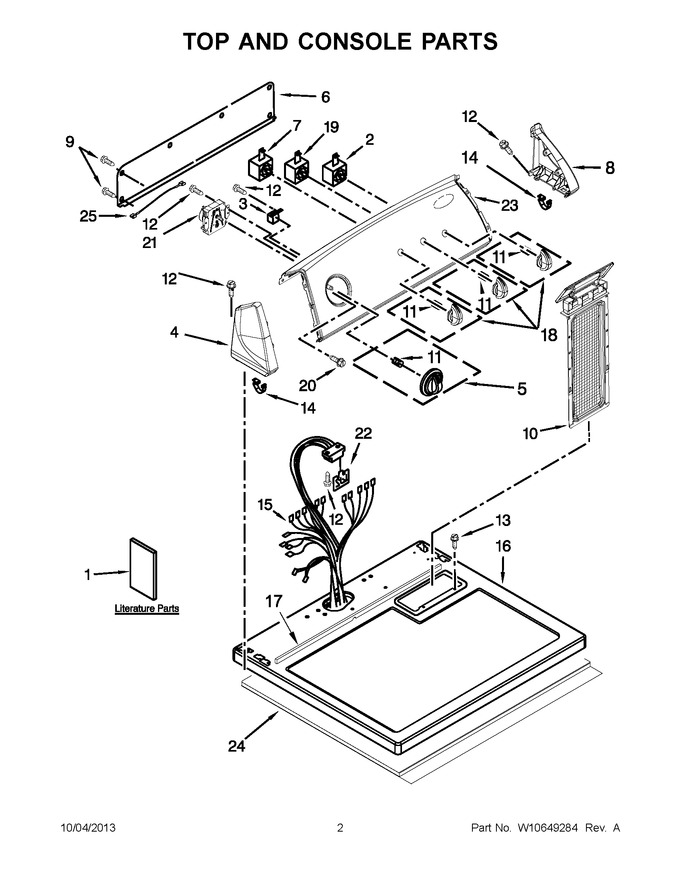

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - 8318272 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329763 | Instructions, Installation |
|
- | |||||
| 1 | W10628790 | Use & Care Guide |
|
- | |||||
| 1 | W10118081 | Wiring Diagram |
|
- | |||||
| 2 | WPW10117655 | Switch, Push To Start (Replaces: W10117655) |
|
Immediately | $ 85.60 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | WPW10251358 | End Cap (left) (white) (Replaces: W10251358) |
|
$ 51.42 | |||||
| 5 | WPW10327522 | Assembly, Timer Knob (grey) (Replaces: W10327522) |
|
$ 50.97 | |||||
| 6 | W10103406 | Panel, Rear (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | 8530169 | Switch, Rotary Temperature |
|
$ 147.06 | |||||
| 8 | WPW10251355 | End Cap (right) (white) (Replaces: W10251355) |
|
$ 51.39 | |||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778253 | Lint Screen (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | 8576542 | Harness, Wiring |
|
- | |||||
| 16 | 8579695 | Top (white) |
|
- | |||||
| 17 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 18 | WPW10327523 | Assembly, Control Knob (grey) (Replaces: W10327523) |
|
$ 55.13 | |||||
| 19 | WP3405156 | Switch, Wrinkle Guard (Replaces: 3405156) |
|
$ 152.79 | |||||
| 20 | WP3400818 | Screw (Replaces: 3400818) |
|
$ 8.81 | |||||
| 21 | WP8566184 | Assembly, Timer (60 Hz.) (Replaces: 8566184) |
|
Immediately | $ 277.09 | ||||
| 22 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 329.93 | ||||
| 23 | W10592516 | Assembly, Panel And Bracket |
|
- | |||||
| 24 | W10123956 | Panel, Dampening |
|
- | |||||
| 25 | W10113080 | Wire, Jumper (buzzer) |
|
- |
