SELECT A DIAGRAM

01 - Cover Sheet

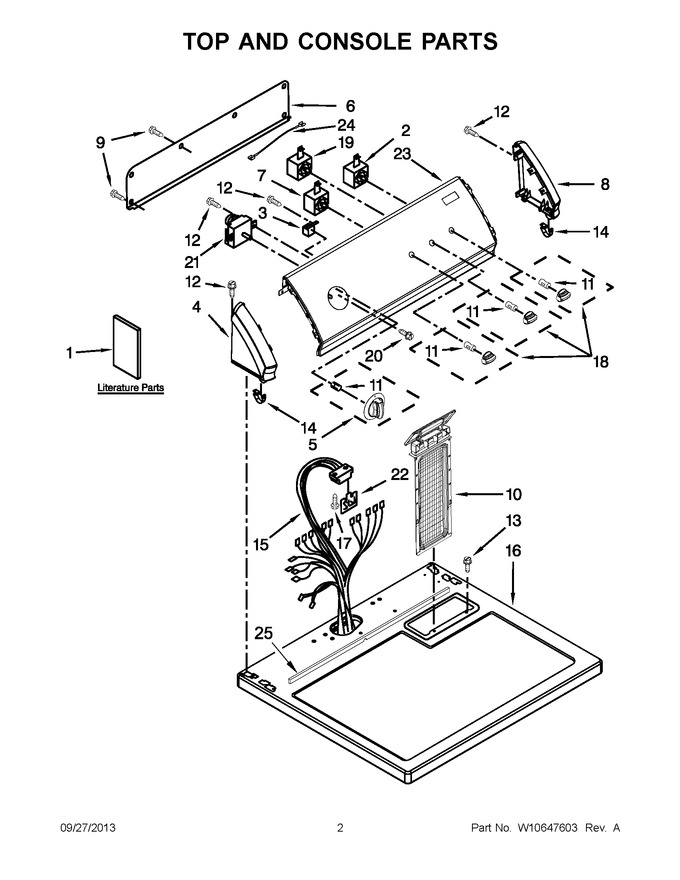

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - 8318272 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096984		Instructions, Installation		Appelez-nous	-
1	W10096992		Use & Care Guide		Appelez-nous	-
1	8578889		Wiring Diagram		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
5	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
6	W10103406		Panel, Rear   (Replaces: 8274261)				$ 135.31
7	8530169		Switch, Rotary Temperature				$ 147.06
8	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	8576542		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
18	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
19	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 152.79
20	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
21	WP8566184		Assembly, Timer (60 Hz.)   (Replaces: 8566184)			Immediately	$ 277.09
22	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
23	W10536506		Assembly, Control Panel & Bracket		Appelez-nous	-
24	W10113080		Wire, Jumper (buzzer)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
