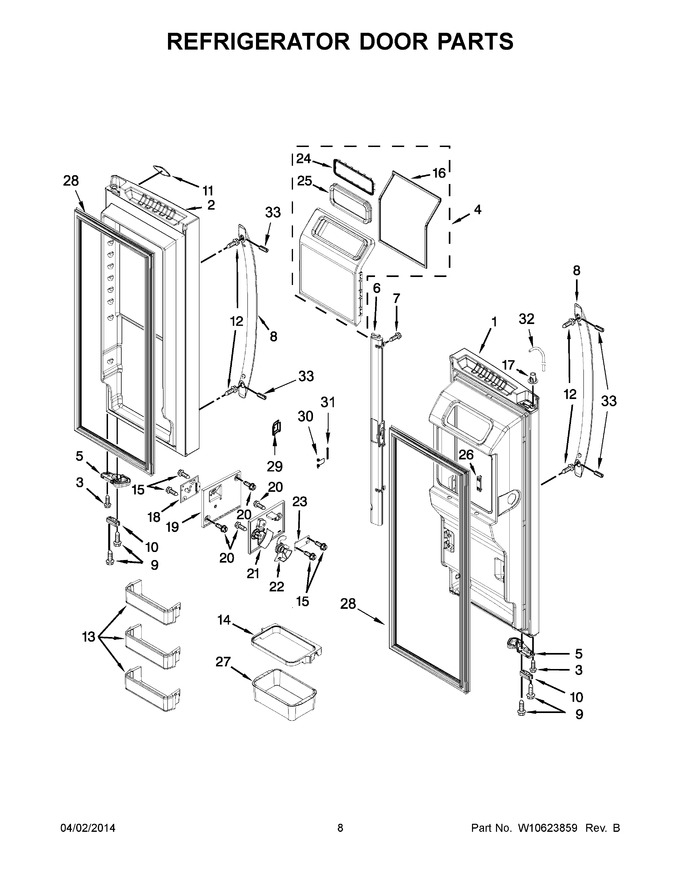

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10577009 | Door, Left (stainless) (Replaces: W10577009) |
|
$ 1,539.96 | |||||
| 2 | LW10564036 | Door, Right (stainless) (Replaces: W10564036) |
|
$ 1,279.50 | |||||
| 3 | WPW10464016 | Screw (Replaces: W10464016) |
|
$ 12.94 | |||||
| 4 | W11399564 | Door, Ice (Replaces: W10564705) |
|
Immediately | $ 315.56 | ||||
| 5 | WPW10372267 | Latch, Door (right Hand) (Replaces: W10372267) |
|
$ 13.98 | |||||
| 5 | W10857643 | Latch, Door (left Hand) (Replaces: W10355634) |
|
$ 87.76 | |||||
| 6 | W10849525 | Mullion, Door (grey) (Replaces: W10654770) |
|
$ 155.62 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | WPW10557401 | Handle, Door (brushed Aluminum) (Replaces: W10557401) |
|
$ 318.30 | |||||
| 9 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 | ||||
| 11 | WPW10427988 | Nameplate (grey) (Replaces: W10427988) |
|
$ 75.04 | |||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 13 | W10468069 | Trivet, 2 Liter |
|
$ 57.04 | |||||
| 14 | WPW10447153 | Bucket, Door Frame (Replaces: W10447153) |
|
$ 249.88 | |||||
| 15 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 16 | W11625019 | Gasket, Ice Door (Replaces: W10567561) |
|
$ 51.72 | |||||
| 17 | W10562834 | Clip, Tube |
|
$ 15.66 | |||||
| 18 | W11813704 | Board, Receiver Circuit (Replaces: W10518658) |
|
Immediately | $ 328.97 | ||||
| 19 | W10563326 | Cover, Receiver |
|
$ 22.76 | |||||
| 20 | WP3400065 | Screw (stainless) (Replaces: 3400065) |
|
Immediately | $ 8.18 | ||||
| 21 | W10563309 | Cover, Emitter |
|
$ 27.35 | |||||
| 22 | W10563328 | Slide, Icemaker Shut Off |
|
$ 231.76 | |||||
| 23 | W10870822 | Board, Emitter Circuit (Replaces: W10518659) |
|
Immediately | $ 222.54 | ||||
| 24 | W11504381 | Retainer, Ice Chute (Replaces: W10562839) |
|
$ 16.14 | |||||
| 25 | W11706282 | Gasket, Ice Chute (Replaces: W10567563) |
|
$ 127.45 | |||||
| 26 | W11684620 | Vent, Thermistor (Replaces: W10646867) |
|
Immediately | $ 23.16 | ||||
| 27 | WPW10248856 | Bucket, Gallon (Replaces: W10248856) |
|
Immediately | $ 83.43 | ||||
| 28 | W10407212 | Gasket, Door (grey) (Replaces: W10407146) |
|
Immediately | $ 254.40 | ||||
| 29 | W10563323 | Emitter, Door |
|
$ 135.47 | |||||
| 30 | WP2198635 | Spring, Door (Replaces: 2198635) |
|
$ 91.43 | |||||
| 31 | W10331749 | Pin, Door |
|
- | |||||
| 32 | W10394073 | Tube, Water |
|
$ 126.25 | |||||
| 33 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 15.79 |
