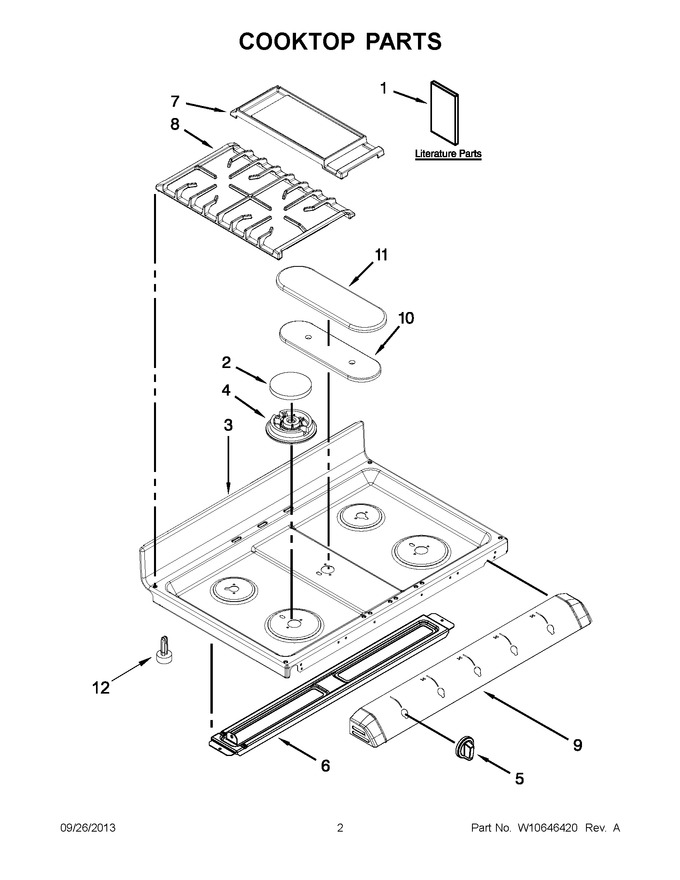

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10311752 | Tech Sheet |
|
- | |||||
| 1 | W10430932 | Owners Manual |
|
- | |||||
| 1 | W10526071 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | WPW10299236 | Kit, Burner Cap (Replaces: W10299236) |
|
Immediately | $ 225.49 | ||||
| 3 | W10401393 | Cooktop (stainless) (Replaces: W10330921) |
|
$ 437.46 | |||||
| 3 | W10336331 | Cooktop (white) (Replaces: W10260170) |
|
$ 418.08 | |||||
| 3 | W10336330 | Cooktop (black) (Replaces: W10260169) |
|
$ 420.07 | |||||
| 4 | WPW10406797 | Burner Head, Rapid (12k) (right Front) (Replaces: W10406797) |
|
$ 92.91 | |||||
| 4 | WPW10336094 | Burner Head (center) (Replaces: W10336094) |
|
$ 227.81 | |||||
| 4 | WPW10406243 | Burner Head, Auxiliary (6k) (left Rear & Right Rear) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 4 | WPW10406878 | Burner Head, Ultra Rapid (17.5k) (left Front) (Replaces: W10406878) |
|
$ 107.48 | |||||
| 5 | WPW10295131 | Knob, Control (stainless) (Replaces: W10295131) |
|
Immediately | $ 23.16 | ||||
| 5 | W10295130 | Knob, Control (black) |
|
$ 46.45 | |||||
| 5 | WPW10290522 | Knob, Control (white) (Replaces: W10290522) |
|
$ 44.71 | |||||
| 6 | W10518258 | Bracket, Cooktop Support |
|
- | |||||
| 7 | W10311218 | Griddle |
|
$ 87.90 | |||||
| 8 | WPW10260069 | Kit, Grate (Replaces: W10260069) |
|
$ 339.91 | |||||
| 9 | W10488869 | Panel, Manifold (black) |
|
- | |||||
| 9 | WPW10488872 | Panel, Manifold (white) (Replaces: W10488872) |
|
$ 361.75 | |||||
| 9 | W10284717 | Panel, Manifold (stainless) |
|
$ 127.17 | |||||
| 10 | WPW10333445 | Base, Burner (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 | |||||
| 11 | WPW10171140 | Kit, Burner Cap (fish Burner Only) (black) (Replaces: W10171140) |
|
$ 168.47 | |||||
| 12 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 17.61 |
