Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580509 Tech Sheet, English Appelez-nous -
1 W10580510 Tech Sheet, French Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10638777 Energy Guide Appelez-nous -
1 W10596234 Use & Care Guide Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Barrier, Vapor Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 43.30

5 WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 175.17

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 149.53

6 W10195872 Panel, Full Front (includes Items 9, 11, 15, & 16) (white) Special Order $ 171.59

6 WPW10195873 Panel, Full Front (includes Items 9, 11, 15, & 16) (black)   (Replaces: W10195873) Special Order $ 363.36

6 WPW10195870 Panel, Full Front (includes Items 9, 11, 15, & 16) (stainless)   (Replaces: W10195870) Special Order $ 397.17

7 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

7 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

8 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

9 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

9 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

9 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

10 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

11 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

12 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

13 W11116870 Bracket, Control Panel   (Replaces: W10194911) Special Order $ 89.95

14 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

15 W10319007 Light Pipe Special Order $ 72.00

16 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

17 W10195738 Handle Assembly (stainless) Appelez-nous -
17 W10195735 Handle Assembly (black) Appelez-nous -
17 W10195736A Handle Assembly (white)   (Replaces: W10195736) Special Order $ 63.06


    View Diagram in Separate Window     Print Icon   Print Part List

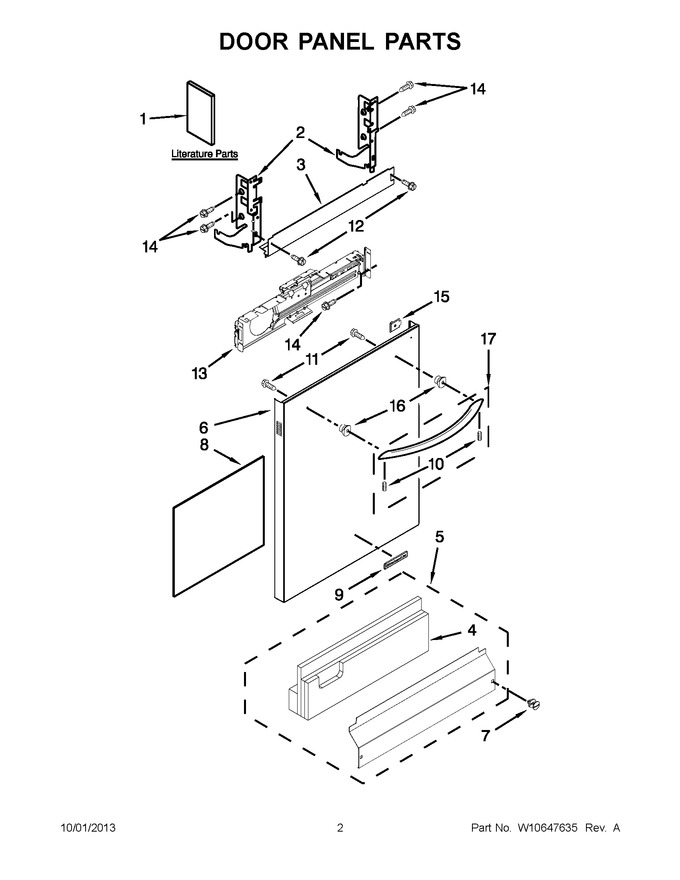

Diagram for KUDS30FXWHA
