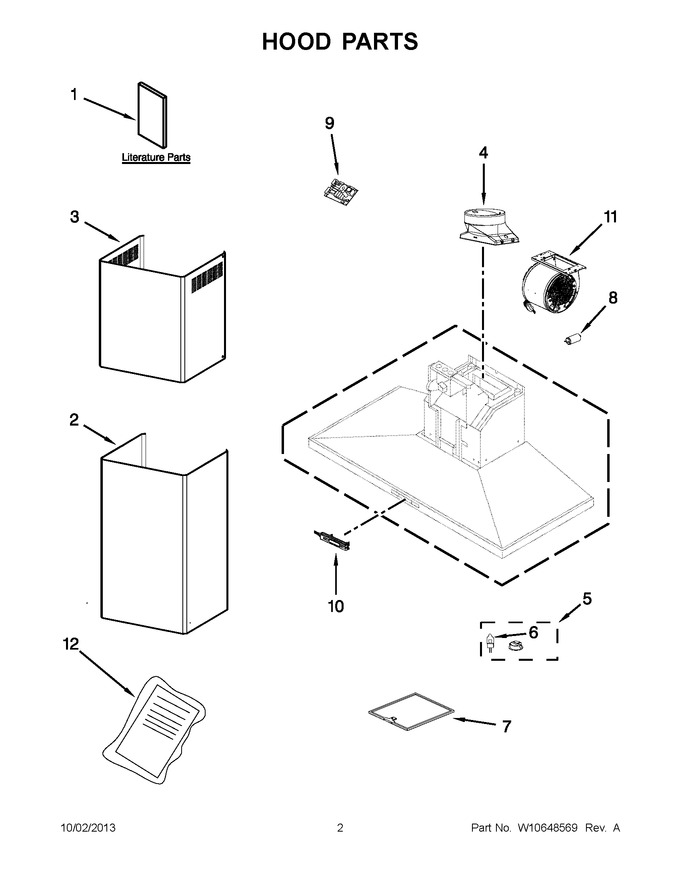

02 - Hood Parts
03 - Accessories
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320584 | Use & Care Guide |
|
- | |||||
| 2 | W11321566 | Chimney, Lower (Replaces: W10291599) |
|
$ 400.90 | |||||
| 3 | W11321566 | Chimney, Upper (Replaces: W10291601) |
|
$ 400.90 | |||||
| 4 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 163.84 | |||||
| 5 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 139.48 | ||||
| 6 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 24.35 | ||||
| 7 | W10351855A | Filter, Grease (Replaces: W10351855) |
|
$ 209.91 | |||||
| 8 | 8186677 | Capacitor (25 Mf) |
|
$ 235.77 | |||||
| 9 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 315.84 | |||||
| 10 | WPW10638162 | Control, Electronic (Replaces: W10638162) |
|
$ 357.93 | |||||
| 11 | W11106377 | Blower, Fan (Replaces: W10638161) |
|
Immediately | $ 734.65 | ||||
| 12 | W10649057 | Hardware |
|
- |
