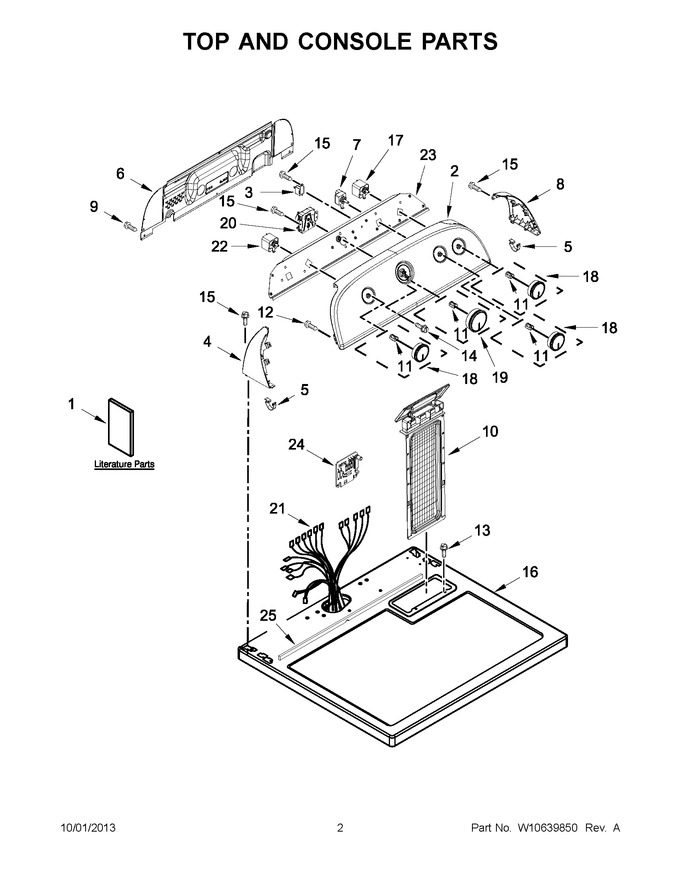

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - 8318272 Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562352		Use And Care Guide		Appelez-nous	-
1	W10118081		Wiring Diagram		Appelez-nous	-
1	W10617665		Installation Instructions		Appelez-nous	-
2	W10557241		Assembly, Console				$ 126.63
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 64.69
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W10556829		Panel, Rear (console)				$ 285.82
7	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 152.79
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 64.34
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W10874409		Screen, Lint (white)   (Replaces: 8557861)			Immediately	$ 67.01
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
18	WPW10576637		Assembly, Control Knob (white/metallic)   (Replaces: W10576637)				$ 54.56
19	WPW10576635		Assembly, Timer Knob (white/metallic)   (Replaces: W10576635)				$ 52.72
20	WP8566184		Assembly, Timer (60 Hz.)   (Replaces: 8566184)			Immediately	$ 277.09
21	W10565799		Harness, Wiring		Appelez-nous	-
22	W11106324		Switch, Temperature   (Replaces: 3405155)				$ 235.13
23	W10556828		Bracket, Control		Appelez-nous	-
24	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
25	W10316616		Seal, Foam				$ 27.79
