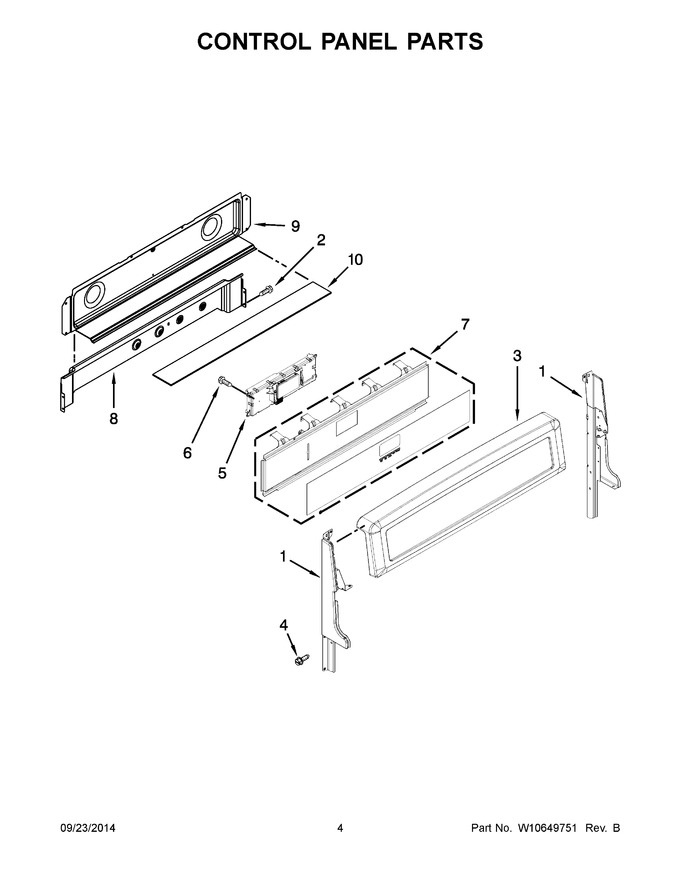

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
3	W10097280		Console (black)				$ 119.25
4	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
5	W10878903		Control, Electronic (mrc2)   (Replaces: W10365413)				$ 444.14
6	WP74003976		Screw   (Replaces: 7101P500-60)				$ 7.55
7	W10297180		Assembly, Membrane (including Bracket) (black)		Appelez-nous	-
8	W10278697		Shield, Vent			Immediately	$ 183.33
9	W10296773		Cover, Backguard				$ 194.52
10	W11684874		Insulation, Wire Cover   (Replaces: W10309232)				$ 35.56
1A	W10319110		Support, Backguard (white (left))				$ 95.95
1B	W10319111		Support, Backguard (black (right))				$ 43.80
1C	W10319112		Support, Backguard (white (right))				$ 93.79
3A	W10097270		Console (white)				$ 118.50
3B	W10097310		Console (stainless)				$ 116.84
7A	W10321790		Assembly, Membrane (including Bracket) (white)				$ 321.89
7B	W10297181		Assembly, Membrane (including Bracket) (stainless)				$ 268.09

    View Diagram in Separate Window       Print Part List
