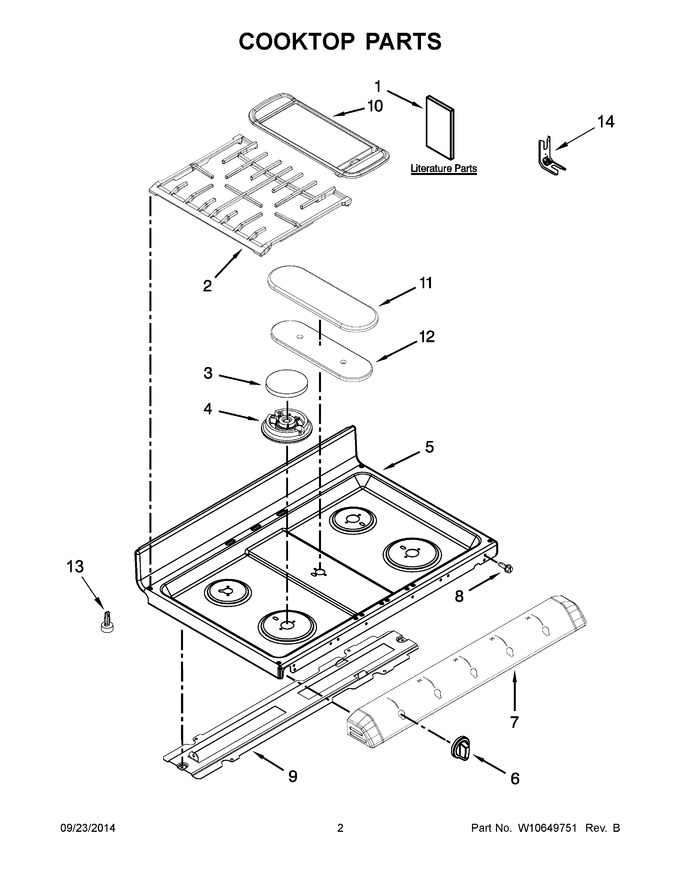

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10526071 | Instructions, Installation |
|
- | |||||
| 2 | W10338216 | Set, Grates (black) |
|
$ 152.18 | |||||
| 3 | WPW10299233 | Set, Burner Cap (black) (Replaces: W10299233) |
|
$ 210.99 | |||||
| 4 | WPW10406878 | Head, Burner (17.5k) (left Front) (Replaces: W10406878) |
|
$ 107.48 | |||||
| 5 | W10336330 | Cooktop (black) (Replaces: W10260169) |
|
$ 420.07 | |||||
| 6 | WPW10296917 | Knob (black) (Replaces: W10296917) |
|
$ 20.88 | |||||
| 7 | W10488871 | Panel, Manifold (black) |
|
$ 141.19 | |||||
| 8 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 9 | W10518258 | Bracket, Cooktop Support |
|
- | |||||
| 10 | 4396096RB | Griddle (Replaces: W10297135) |
|
$ 282.24 | |||||
| 11 | WPW10171140 | Set, Fish Burner Cap (black) (Replaces: W10171140) |
|
$ 168.47 | |||||
| 12 | WPW10333445 | Base, Burner (fish Burner Only) (Replaces: W10333445) |
|
$ 110.05 | |||||
| 13 | W11189172 | Glide, Main Top (Replaces: 8016P022-60) |
|
Immediately | $ 17.61 | ||||
| 14 | WP3801F656-51 | Bracket, Anti Tip (Replaces: 3801F656-51) |
|
Immediately | $ 6.11 | ||||
| 11A | W10171137 | Set, Fish Burner Cap (wetstone) |
|
$ 116.61 | |||||
| 1A | W10430935 | Guide, Use & Care |
|
- | |||||
| 1B | W10311752 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2A | W10338217 | Set, Grates (wetstone) |
|
$ 151.20 | |||||
| 3A | W10299239 | Set, Burner Cap (wetstone) |
|
- | |||||
| 4A | WPW10406243 | Head, Burner (6k) (left Rear & Right Rear) (Replaces: W10406243) |
|
Immediately | $ 39.08 | ||||
| 4B | WPW10406797 | Head, Burner (12k) (right Front) (Replaces: W10406797) |
|
$ 92.91 | |||||
| 4C | WPW10336094 | Head, Burner (center) (Replaces: W10336094) |
|
$ 227.81 | |||||
| 5A | W10336331 | Cooktop (white) (Replaces: W10260170) |
|
$ 418.08 | |||||
| 6A | WPW10281279 | Knob (white) (Replaces: W10281279) |
|
Immediately | $ 21.34 | ||||
| 6B | W10294792 | Knob (stainless) |
|
$ 19.13 | |||||
| 7A | W10488874 | Panel, Manifold (white) |
|
$ 141.79 | |||||
| 7B | W10219246 | Panel, Manifold (stainless) |
|
$ 132.74 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10683008 | Harness, Main |
|
- | |||||
| NI | W10408058 | Harness, Spark |
|
$ 77.20 | |||||
| NI | W10225701 | Harness, Sensor |
|
$ 184.15 | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 5.07 | |||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | 8019P026-60 | Clip, Wire |
|
- |
