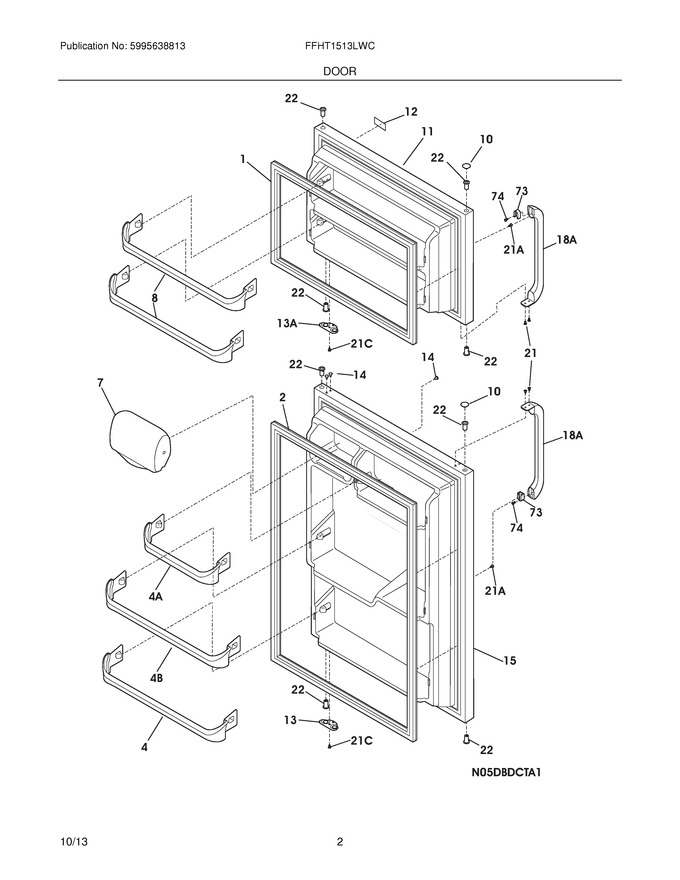

03 - Doors


05 - Cabinet


07 - Shelves


09 - System


10 - Wiring Schematic


11 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240535101		Rack-door			Immediately	$ 31.74
7	240337701		Door-dairy,w/o Graphics ,white			Immediately	$ 37.80
8	240535001		Rack-door			Immediately	$ 53.55
10	240381301		Plug-button,white ,hinge Brg Hole ,(2)			Immediately	$ 21.06
11	240415401		Door,frzr ,white				$ 399.11
12	242062801		Nameplate,white				$ 11.65
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 16.85
14	240494001		Plug-button,white ,cab Liner Holes			Immediately	$ 20.22
15	240415501		Door,refr ,white				$ 312.42
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500 ,zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507146		Bearing-hinge,natural Color   (Replaces: 240527101)			Immediately	$ 8.43
73	218396701		Block-handle Mtg,dovetail		Appelez-nous	-
74	215503203		Screw,cr Pan Hd ,10-16 X 0.500			Immediately	$ 7.88
13A	240312414		Door Stop,white ,frzr				$ 21.26
14A	240494001		Plug-button,screw Type ,white   (Replaces: 240428301)			Immediately	$ 20.22
18A	218428101		Handle-door,white ,w/block & Screw			Immediately	$ 25.26
21A	240521303		Screw,no.10-16 X 1/2			Immediately	$ 33.55
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500			Immediately	$ 15.75
4A	240535301		Rack-door,12.03``			Immediately	$ 45.69
4B	240535201		Rack-door			Immediately	$ 33.71
F1	242193201		Gasket-frzr Door,white ,magnetic			Immediately	$ 216.64
F2	241872502		Gasket-refr Door,white ,magnetic			Immediately	$ 180.10
