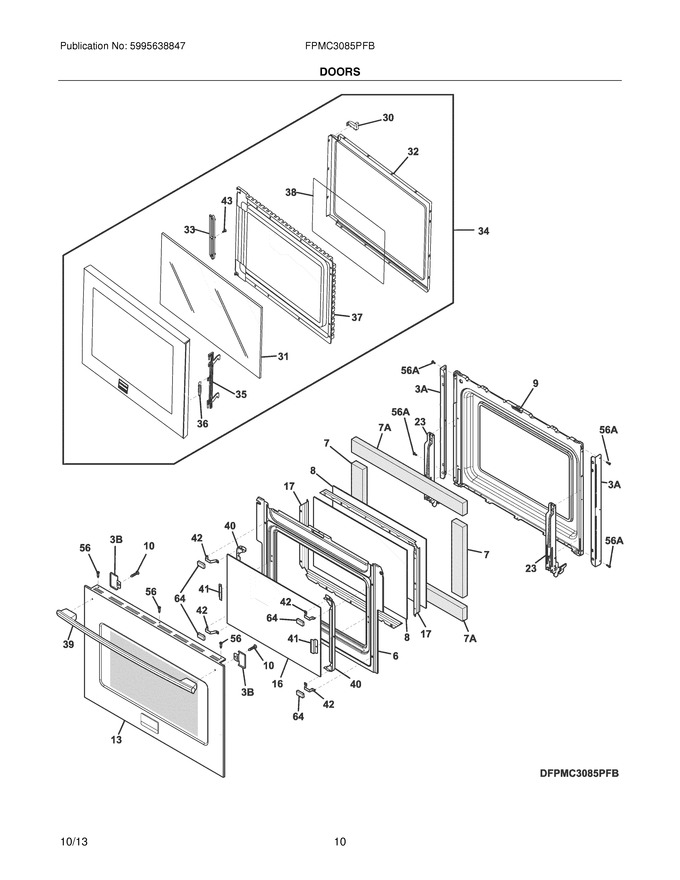

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006903		Baffle,door		Appelez-nous	-
7	318372017		Insulation,door				$ 18.11
8	5304503232		Glass,oven Door ,heat Barrier ,inner ,hrc2   (Replaces: 316117502)				$ 129.94
9	139000411		Liner,oven Door   (Replaces: 139000410)				$ 169.37
10	5304472906		Screw,handle Mtg ,no.10-24 X 1.5 ,(2)				$ 8.98
13	808950007		Door Assembly,outer ,stainless ,w/trim & Badge				$ 512.43
16	316446401		Glass,oven Door ,airwash   (Replaces: 316446400)			Immediately	$ 139.03
17	318264731		Spacer,glass ,(2)   (Replaces: 318264712)				$ 80.05
23	316575915		Hinge,oven Door ,lilac ,(2)   (Replaces: 139014301)				$ 184.54
30	5304442145		Door Stop		Appelez-nous	-
31	5304472853		Panel,door Glass ,silver		Appelez-nous	-
32	5304440861		Choke Cover,inner Door				$ 81.13
33	5304440862		Stop,door Glass		Appelez-nous	-
34	5304475289		Door Assembly,complete ,stainless ,w/badge				$ 359.15
35	5304441893		Latch,door			Immediately	$ 54.34
36	5304440316		Spring,door Latch			Immediately	$ 67.78
37	5304472852		Panel,inner Door ,light Gray		Appelez-nous	-
38	5304440860		Seal,door ,film				$ 63.09
39	5304532118		Handle,door/drawer ,stainless   (Replaces: 316551500)				$ 125.42
40	318242702		Bracket,glass Holder ,door ,(2)				$ 21.91
41	318370602		Bracket,glass Panel ,(2)				$ 15.17
42	318382302		Bracket,glass Retainer ,(4)   (Replaces: 318382301)				$ 56.46
43	5304452259		Screw		Appelez-nous	-
56	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
64	318165800		Spacer				$ 19.69
3A	139014401		Trim,oven Door ,black ,side ,(2) ,vented				$ 36.24
3B	318262104		Cover,rear Door ,black ,(2)				$ 27.77
56A	5303324184		Screw,8-18 X 5/16 ,black			Immediately	$ 15.75
7A	318372016		Insulation,door				$ 19.69
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75
NI	316021109		Screw,8-18 X 0.5 ,chrome			Immediately	$ 30.55
