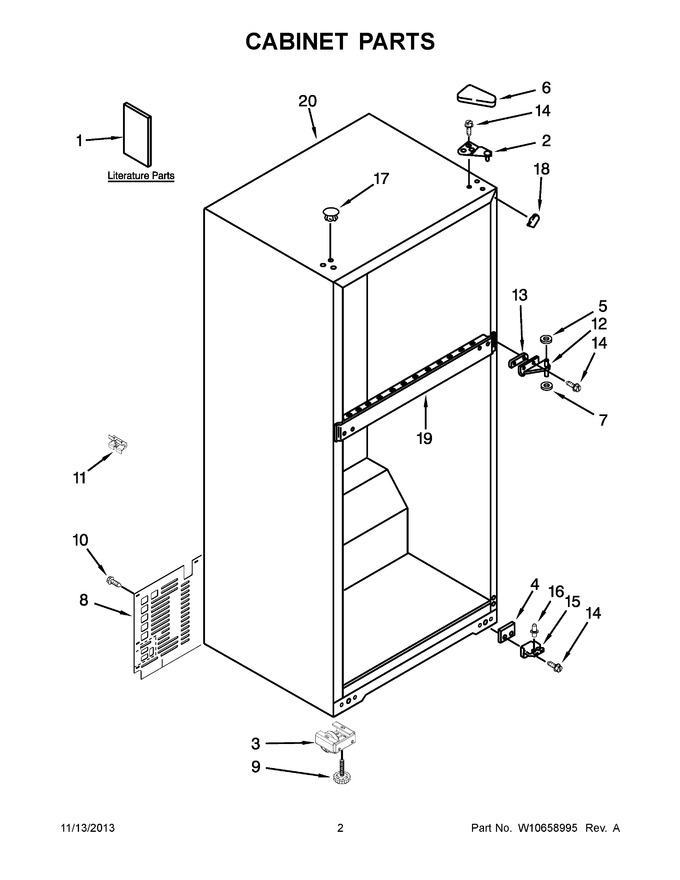

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10402929		Service & Wiring Sheet		Appelez-nous	-
2	WP2261963		Top Hinge Assembly   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Assembly, Roller   (Replaces: W10142530)			Immediately	$ 118.10
4	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 8.16
5	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
6	WP2213360		Cover, Hinge (white)   (Replaces: 2213360)				$ 20.19
7	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.88
8	W10570558		Cover Unit				$ 103.40
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 12.35
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	2266506		Spacer, Back				$ 14.39
12	WP2166037		Hinge Assembly, Center   (Replaces: 2166086)				$ 85.08
13	2166043		Shim, Hinge Center (white)				$ 69.76
14	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
15	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 80.00
16	WP2325483		Pin, Bottom Hinge   (Replaces: 2325483)			Immediately	$ 7.55
17	WPW10520304		Hole Plug (white)   (Replaces: W10520304)			Immediately	$ 19.22
18	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 8.09
19	N/P		Rail, Center (not Serviced)		Appelez-nous	-
20	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
13A	2215385		Shim, Hinge Center (black)				$ 91.34
17A	WPW10520305		Hole Plug (black)   (Replaces: W10520305)				$ 19.18
18A	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.98
1A	W10214132		Use & Care Guide		Appelez-nous	-
1B	W10287757		Energy Guide		Appelez-nous	-
1C	677969		Do-it-yourself Repair Manuals				$ 30.30
6A	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 19.12
