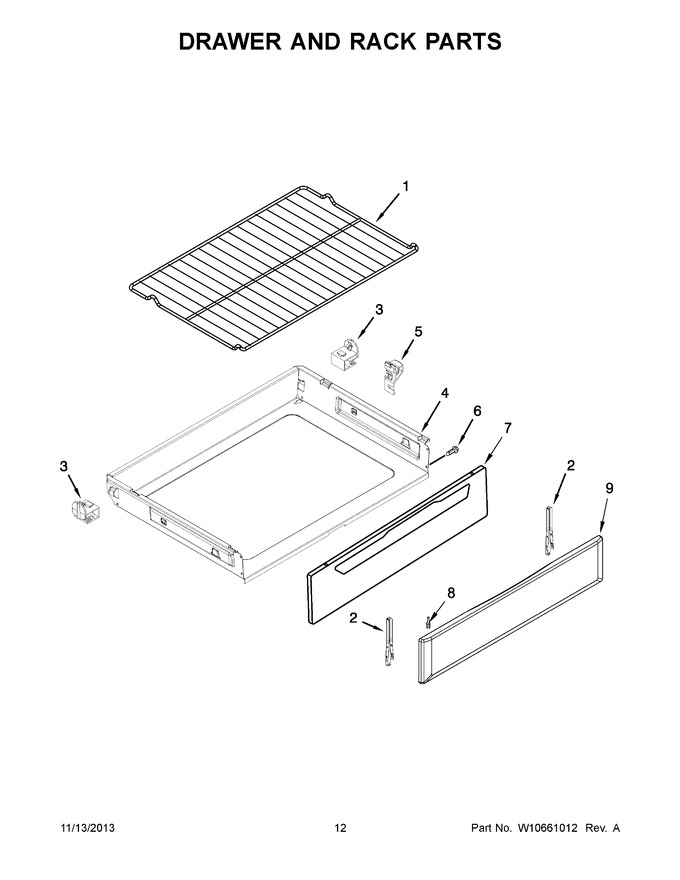

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10462911 | Bracket, Mounting (for Black & White Models) |
|
- | |||||
| 2 | W11759228 | Bracket, Mounting (for Stainless Models) (Replaces: W10462909) |
|
$ 28.27 | |||||
| 3 | W10763667 | Glide, Drawer Rear (Replaces: W10317899) |
|
Immediately | $ 107.68 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 138.15 | ||||
| 5 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 107.68 | ||||
| 6 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 7 | W11230490 | Panel, Drawer Front (black) (Replaces: 8053338) |
|
$ 211.59 | |||||
| 7 | W11230486 | Panel, Drawer Front (white) (Replaces: 8053336) |
|
$ 211.49 | |||||
| 8 | WP3196813 | Rivet, Push (black) (Replaces: 3196813) |
|
Immediately | $ 11.20 | ||||
| 8 | WP3196814 | Rivet, Push (white) (Replaces: 3196814) |
|
Immediately | $ 11.07 | ||||
| 9 | W11811322 | Panel, Drawer Front (stainless) (Replaces: W10330069) |
|
Immediately | $ 161.49 |
