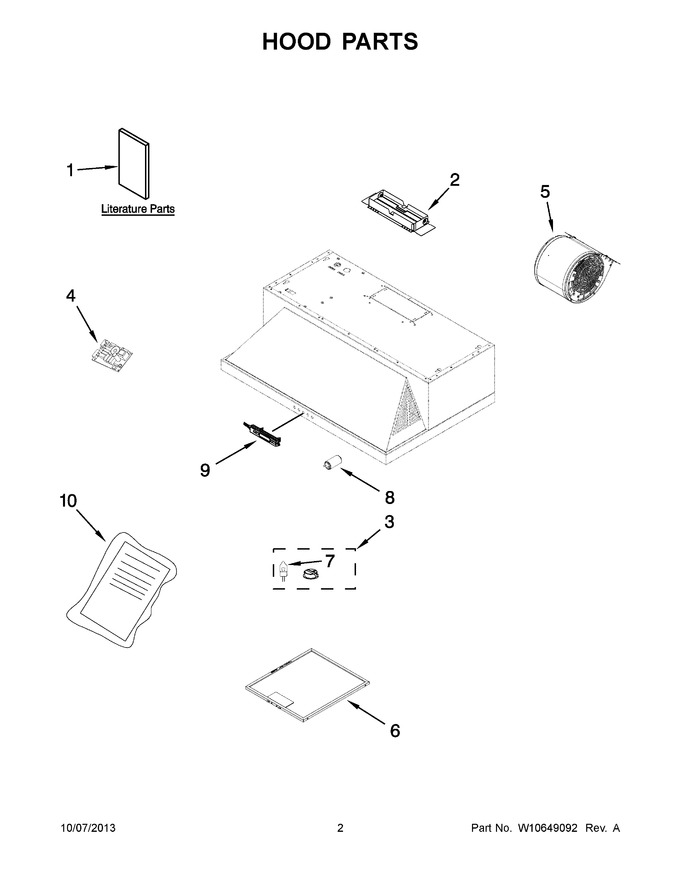

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10320581 | Use & Care Guide |
|
- | |||||
| 2 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 195.58 | |||||
| 3 | WPW10562734 | Assembly, Light Puck (Replaces: W10562734) |
|
Immediately | $ 132.83 | ||||
| 4 | WPW10291604 | Board, Power (Replaces: W10291604) |
|
$ 315.84 | |||||
| 5 | W11106377 | Assembly, Fan (Replaces: W10294501) |
|
Immediately | $ 734.65 | ||||
| 6 | W10351855A | Filter, Grease (Replaces: W10351855) |
|
$ 209.91 | |||||
| 7 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 8 | 8186677 | Capacitor (25 Mf) |
|
$ 235.77 | |||||
| 9 | WPW10638162 | Control, Electronic (Replaces: W10638162) |
|
$ 357.93 | |||||
| 10 | W10351859 | Hardware, Install |
|
- | |||||
| NI | W10272068 | Accessories, Charcoal Filter Kit (for Non-vented Installations Only) |
|
Immediately | $ 71.11 | ||||
| NI | W10446914 | Accessories, 3-1/4``x10`` Makeup Air Kit |
|
$ 356.33 |
