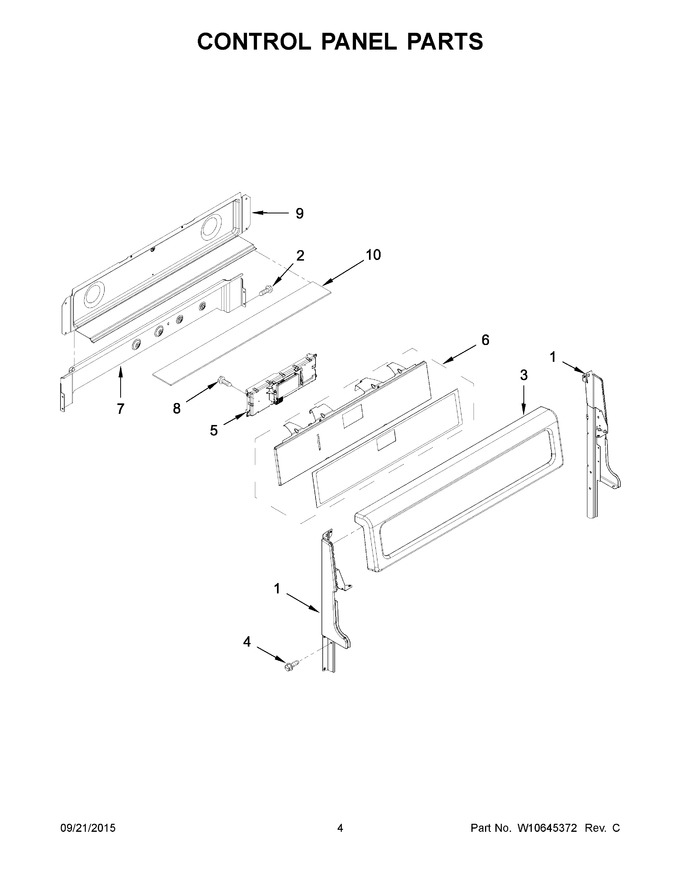

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319109		Support, Backguard (black (left))				$ 92.84
2	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
3	WPW10318551		Console (black)   (Replaces: W10318551)				$ 272.41
4	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
5	WPW10539994		Control Mrc2   (Replaces: W10539994)				$ 571.43
6	W10528789		Assembly, Overlay (black)		Appelez-nous	-
7	W10278697		Shield, Vent			Immediately	$ 183.33
8	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
9	W10296773		Cover, Backguard				$ 194.52
10	W11684874		Insulation, Wire Cover   (Replaces: W10309232)				$ 35.56
1A	W10319110		Support, Backguard (white (left))				$ 95.95
1B	W10319111		Support, Backguard (black (right))				$ 43.80
1C	W10319112		Support, Backguard (white (right))				$ 93.79
3A	WPW10318552		Console (white)   (Replaces: W10318552)			Immediately	$ 282.47
3B	WPW10318550		Console (stainless)   (Replaces: W10318550)				$ 273.23
6A	W10528790		Assembly, Overlay (white)		Appelez-nous	-
6B	WPW10531230		Assembly, Overlay (stainless)   (Replaces: W10531230)				$ 342.64

    View Diagram in Separate Window       Print Part List
