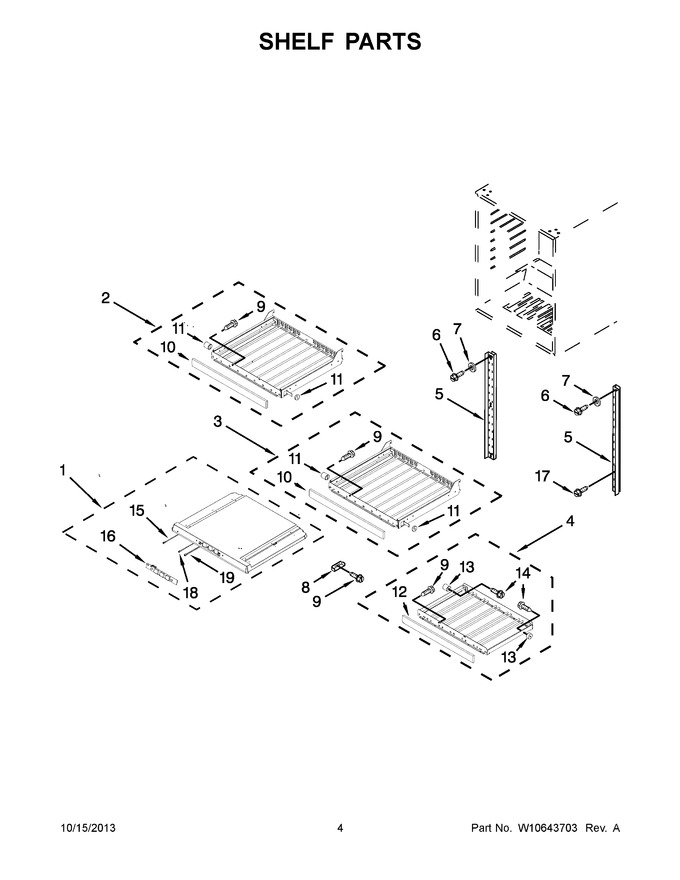

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10645912		Temperature Separator		Appelez-nous	-
2	W10646440		Wine Rack, Upper		Appelez-nous	-
3	W10646441		Wine Rack, Middle		Appelez-nous	-
4	W10646442		Wine Rack, Bottom		Appelez-nous	-
5	W10299079		Ladder, Shelf (right Side)		Appelez-nous	-
5	W10299080		Ladder, Shelf (left Side)		Appelez-nous	-
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	4344850		Stop-roller		Appelez-nous	-
9	W10281318		Screw		Appelez-nous	-
10	W10645907		Trim, Upper & Middle Racks		Appelez-nous	-
11	4344866		Support (left)		Appelez-nous	-
11	4344867		Support (right)		Appelez-nous	-
12	W10645909		Trim, Lower Rack		Appelez-nous	-
13	4344886		Support, Bumper (right)		Appelez-nous	-
13	4344885		Support, Bumper (left)		Appelez-nous	-
14	4344915		Screw, Right Hand		Appelez-nous	-
14	4344914		Screw, Left Hand		Appelez-nous	-
15	W10238024		Transformer Cable		Appelez-nous	-
16	W10282164		Pcb Display Board				$ 352.46
17	W10162986		Screw		Appelez-nous	-
18	W10238025		Sensor Assembly, Top				$ 118.12
19	W10238026		Sensor Assembly				$ 124.36
NI	W10238031		Led Spacer		Appelez-nous	-
NI	W10238189		Support		Appelez-nous	-
NI	W10239385		Support Spacer		Appelez-nous	-
NI	W10204809		Screw		Appelez-nous	-
NI	N/P		Following Parts Not .illustrated		Appelez-nous	-
NI	W10325066		Overlay, Display		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
