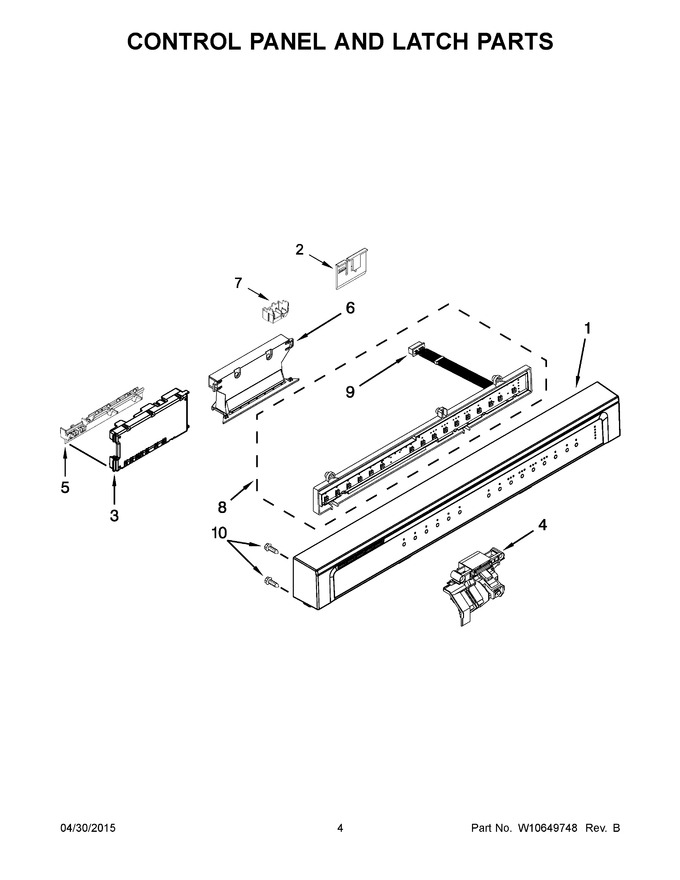

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10350252		Console Assembly (includes Active Overlay & Insert) (black)				$ 102.97
2	W11256107		Clip, Control   (Replaces: W10195237)				$ 23.27
3	W10597042		Control, Electronic   (Replaces: W10539781)				$ 196.26
4	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10653840)			Immediately	$ 34.18
5	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
6	WPW10321839		Handle (black)   (Replaces: W10321839)			Immediately	$ 149.02
7	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
8	WPW10629166		Housing Assembly, User Interface   (Replaces: W10440700)			Immediately	$ 315.65
9	W10327246		Wire, Jumper				$ 67.01
10	WPW10348408		Screw   (Replaces: W10348408)			Immediately	$ 7.55
1A	WPW10350330		Console Assembly (includes Active Overlay & Insert) (white)   (Replaces: W10350253)				$ 232.25
1B	W10642279		Console Assembly (includes Active Overlay & Insert) (biscuit/bisque)		Appelez-nous	-
1C	W10350254		Console Assembly (includes Active Overlay & Insert) (silver)		Appelez-nous	-
6A	W10358150		Handle (white)				$ 58.72
6B	W10358152		Handle (biscuit/bisque)		Appelez-nous	-
