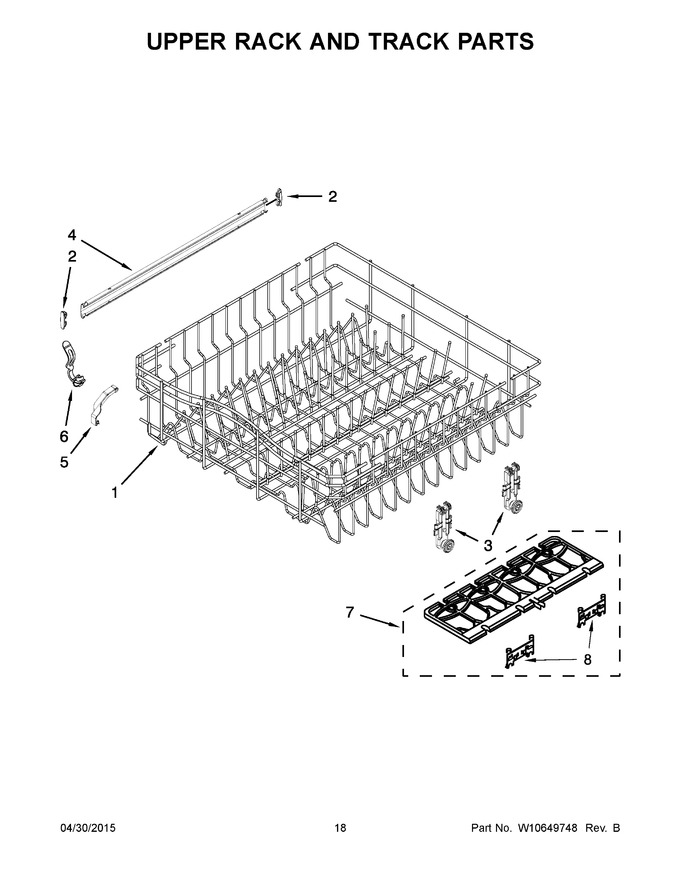

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10350382) |
|
Immediately | $ 179.58 | ||||
| 2 | WP8565925 | Stop, Track (non-removable) (Replaces: 8565925) |
|
Immediately | $ 6.87 | ||||
| 3 | WP8268743 | Mount, Wheel Stationary (Replaces: 8268743) |
|
Immediately | $ 30.67 | ||||
| 4 | WP3385089 | Track, Dishrack (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 5 | WPW10254690 | Clip, Dispenser Guard (Replaces: W10254690) |
|
$ 28.70 | |||||
| 6 | WP8539113 | Clip, No Flip (Replaces: 8539113) |
|
$ 11.43 | |||||
| 7 | WPW10082810 | Cupshelf Assembly (Replaces: W10082810) |
|
$ 115.41 | |||||
| 8 | 8539142 | Clip, Cupshelf |
|
$ 58.65 |
