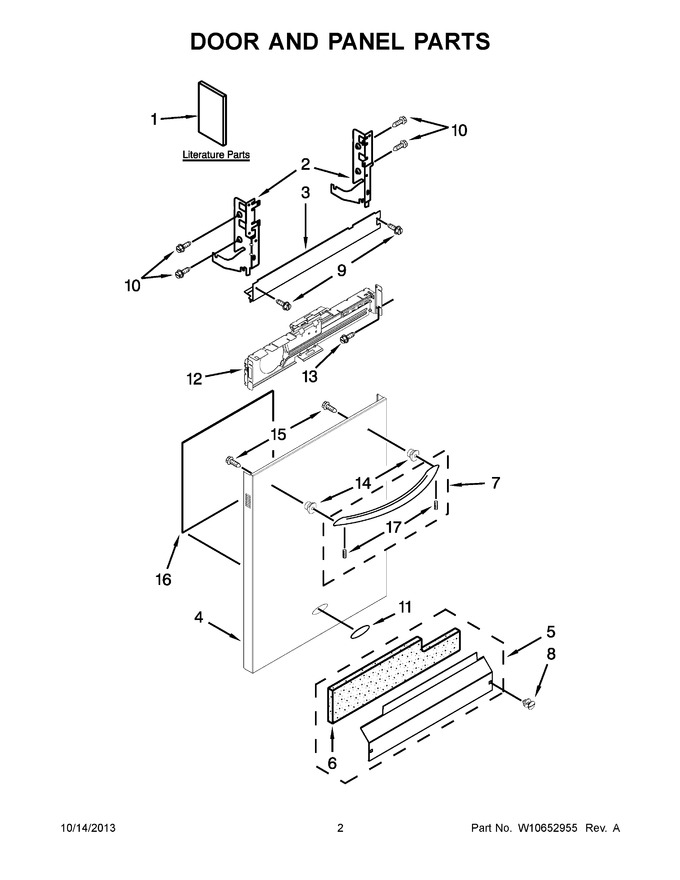

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10401504 | Instructions, Installation |
|
- | |||||
| 1 | W10596231 | Use & Care Guide, English/french |
|
- | |||||
| 1 | W10580766 | Tech Sheet, English |
|
- | |||||
| 1 | W10580767 | Tech Sheet, French |
|
- | |||||
| 1 | W10638467 | Energy Guide |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 32.88 | ||||
| 4 | W10323562 | Front Panel (includes Items 11, 14 & 15) (stainless) |
|
$ 174.54 | |||||
| 5 | W10827631 | Access Panel (black) (Replaces: W10369024) |
|
Immediately | $ 195.64 | ||||
| 6 | W10831329 | Insulation, Toe Panel (Replaces: W10073540) |
|
Immediately | $ 43.30 | ||||
| 7 | W10330970 | Handle Assembly (stainless) |
|
- | |||||
| 8 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 9 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 10 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 8.25 | |||||
| 11 | WPW10393264 | Nameplate (grey) (Replaces: W10393264) |
|
$ 67.74 | |||||
| 12 | WPW10350242 | Bracket, Control (Replaces: W10350242) |
|
$ 88.32 | |||||
| 13 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 14 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 15 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 16 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 96.23 | |||||
| 17 | WP8534008 | Screw, Set (Replaces: 8534008) |
|
$ 9.37 |
