01 - Cover Sheet

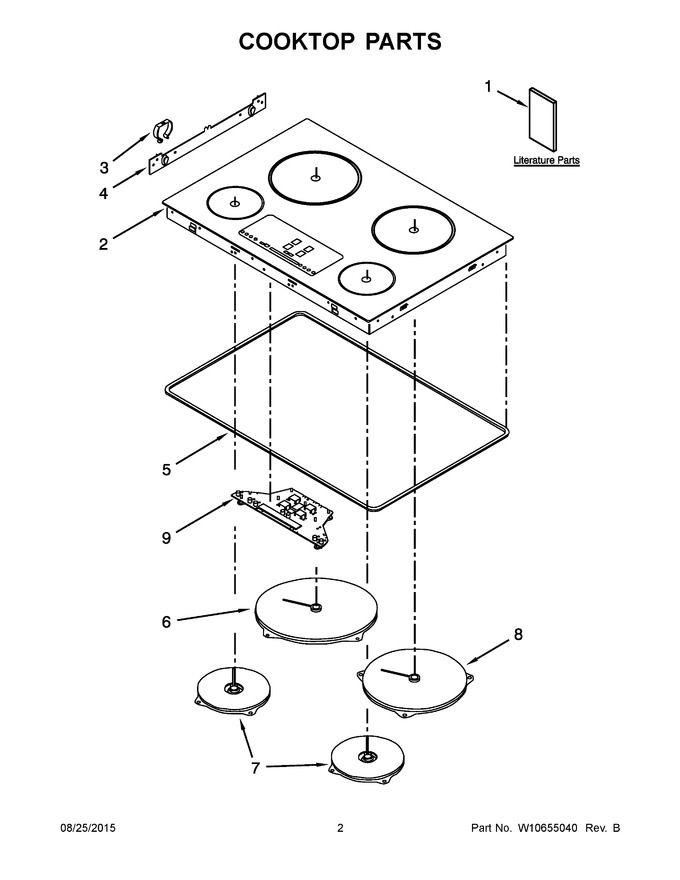

02 - Cooktop Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10356035 | Installation Instructions |
|
- | |||||
| 2 | WPW10328518 | Cooktop, Glass (Replaces: W10328518) |
|
$ 513.72 | |||||
| 3 | W10810497 | Spring, Cooktop (Replaces: W10328375) |
|
Immediately | $ 22.33 | ||||
| 4 | WPW10328377 | Bracket, Support (Replaces: W10328377) |
|
Immediately | $ 53.05 | ||||
| 5 | WPW10237005 | Gasket Cooktop (Replaces: W10237005) |
|
Immediately | $ 163.56 | ||||
| 6 | WPW10328391 | Element (9 Inch) (left Rear) (Replaces: W10328391) |
|
Immediately | $ 374.30 | ||||
| 7 | W10328384 | Element (6 Inch) (left Front & Right Front) |
|
$ 247.85 | |||||
| 8 | W10328387 | Element (8 Inch) (right Rear) |
|
$ 271.83 | |||||
| 9 | WPW10396615 | User Interface - Display Board (Replaces: W10396615) |
|
Immediately | $ 733.52 | ||||
| 1A | W10623784 | Tech Sheet |
|
- |
