SELECT A DIAGRAM

02 - Oven


03 - Control Panel , Lit/optional


04 - Burner


05 - Oven Door

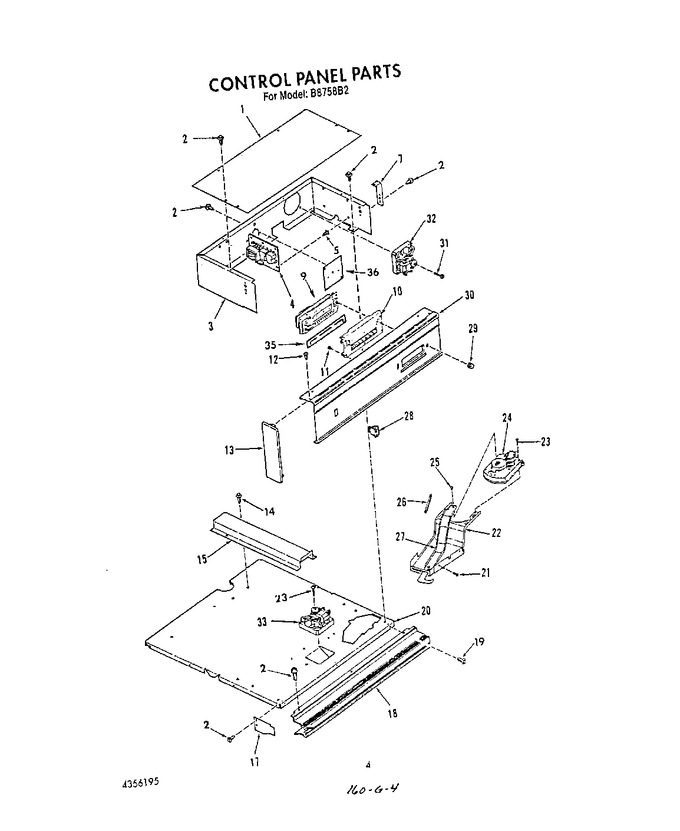

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338050		Cover, Top		Appelez-nous	-
2	W10850756		Screw, No.10-16 X 7/16   (Replaces: 4343086)				$ 7.38
3	4338552		Housing, Control		Appelez-nous	-
4	4338104		Circuit Board		Appelez-nous	-
5	4336562		Spacer		Appelez-nous	-
7	4338562		Bracket		Appelez-nous	-
9	4342969		Clock/oven Control		Appelez-nous	-
10	4342950		Lens, Clock				$ 99.57
11	4323476		Screw, No.6-32 X 5/16		Appelez-nous	-
12	4333427		Screw, No.10-32 X 1/2		Appelez-nous	-
13	4337791		End Cap (right)		Appelez-nous	-
13	4337790		End Cap (left)		Appelez-nous	-
14	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
15	4342970		Cover, Wire		Appelez-nous	-
17	4337717		Shield, Heat (lt/rt)		Appelez-nous	-
18	4338003		Trim-control Panel		Appelez-nous	-
19	4337728		Screw		Appelez-nous	-
20	4337891		Top, Cabinet		Appelez-nous	-
21	4332521		Screw No.10-32x1/4		Appelez-nous	-
22	4337806		Plate, Door Lock		Appelez-nous	-
23	4350821		Screw		Appelez-nous	-
24	4338294		Motor, Lock		Appelez-nous	-
25	4324647		Screw, No.8-32 X 3/8		Appelez-nous	-
26	4338207		Spring, Lock		Appelez-nous	-
27	4338225		Lever, Lock		Appelez-nous	-
28	WP4314961		Switch   (Replaces: 4337275)				$ 84.56
29	4338513		Knob, Clock		Appelez-nous	-
30	4337719		Panel, Control		Appelez-nous	-
31	4323953		Screw No.10-32x1/4		Appelez-nous	-
32	4337808		Fan Assembly		Appelez-nous	-
33	4338418		Fan Assembly		Appelez-nous	-
35	4343122		Support, Clock		Appelez-nous	-
36	WP285432		Wire Harness (1/4``)   (Replaces: 4325037)				$ 7.34
36	4337736		Wire Harness (relay)		Appelez-nous	-
36	4325031		Wire Harness (eyelet Terminal)		Appelez-nous	-
36	4325035		Wire Harness (flag Terminal Faston Terminal)		Appelez-nous	-
36	4325036		Wire Harness (3/16``)		Appelez-nous	-
36	4338553		Cover, Plate		Appelez-nous	-
36	4336940		Wire Harness (sensor)		Appelez-nous	-
36	4338499		Wire Harness (fan)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
