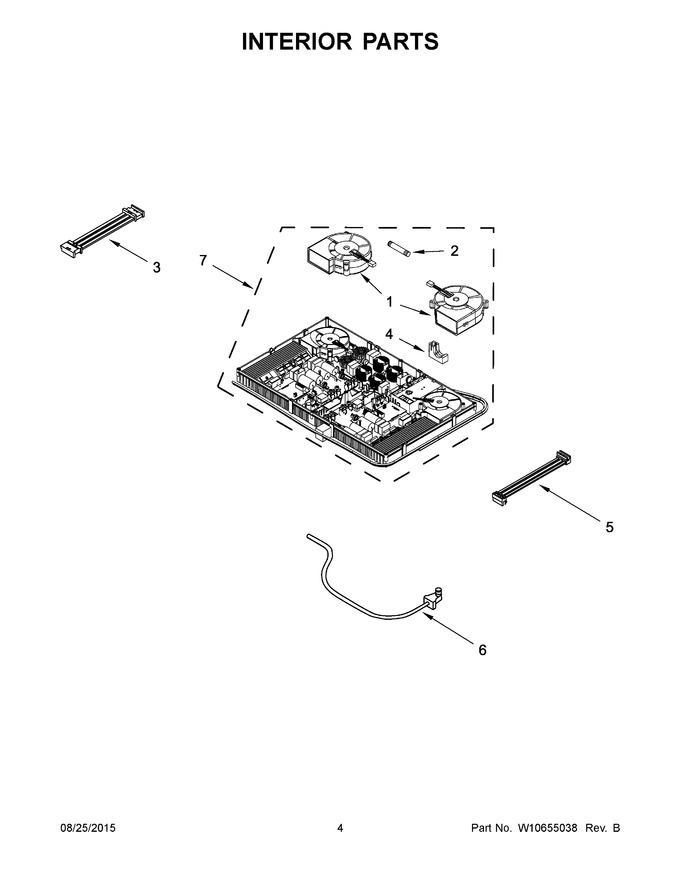

03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328381 | Fan, Cooling (left) |
|
Immediately | $ 360.00 | ||||
| 2 | WPW10328492 | Fuse (Replaces: W10328492) |
|
Immediately | $ 102.98 | ||||
| 3 | W10328395 | Harness, User Interface |
|
$ 105.59 | |||||
| 4 | W10328401 | Harness, Fixing Clip |
|
$ 258.72 | |||||
| 5 | W11428265 | Harness, User Interface (Replaces: W10328396) |
|
$ 216.26 | |||||
| 6 | W10651543 | Harness, Thermal Fuse |
|
Immediately | $ 532.16 | ||||
| 7 | W10651547 | Module |
|
$ 1,040.62 | |||||
| 1A | W10328378 | Fan, Cooling (right) |
|
$ 362.13 | |||||
| NI | W10328499 | Kit, Mounting Marble Countertop |
|
$ 276.81 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10310006A | Adhesive, Marble Countertop (Replaces: W10310006) |
|
$ 226.79 |
