Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10580510 Tech Sheet, French Appelez-nous -
1 W10321621 Instructions, Installation Appelez-nous -
1 W10638777 Energy Guide Appelez-nous -
1 W10596234 Use & Care Guide Appelez-nous -
1 W10580509 Tech Sheet, English Appelez-nous -
2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Barrier, Vapor Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10463662 Spacer, Control Bracket Panel Special Order $ 49.41

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 149.53

5 WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 175.17

6 W10195532 Panel, Full Front (includes Items 7 & 9) (black) Special Order $ 155.07

6 W10195533 Panel, Full Front (includes Items 7 & 9) (white) Special Order $ 162.74

6 W10195531 Panel, Full Front (includes Items 7 & 9) (stainless) Special Order $ 185.43

7 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

7 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

7 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

8 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

9 W10563099 Pocket, Handle (stainless) Special Order $ 148.79

9 W10195653 Pocket, Handle (black) Special Order $ 142.53

9 W10195654 Pocket, Handle (white) Special Order $ 99.15

10 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

11 WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77

11 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

12 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

13 W11116870 Bracket, Control Panel   (Replaces: W10194911) Special Order $ 89.95

14 W10354790 Block, Foam Special Order $ 11.38

15 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

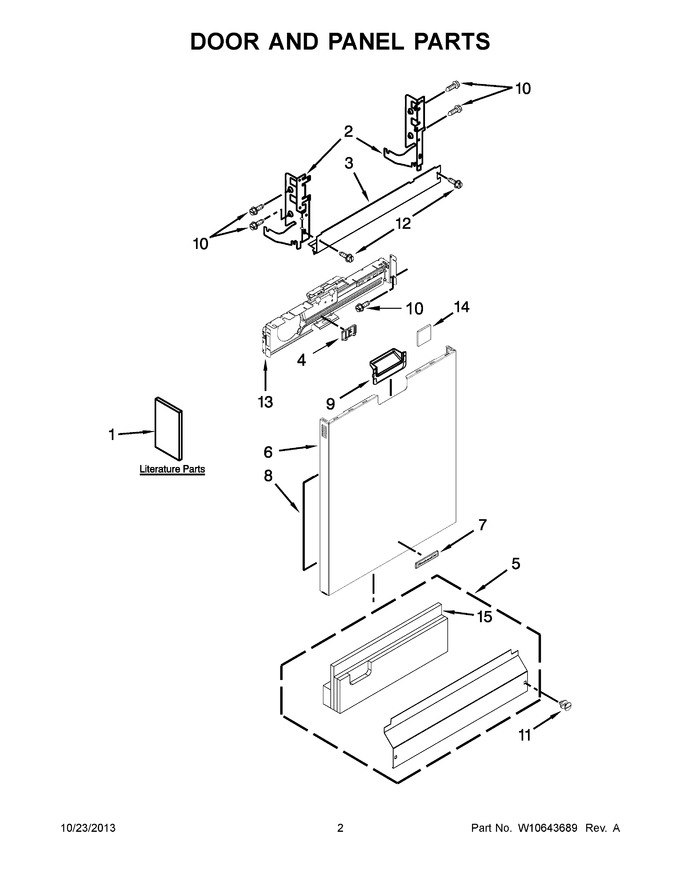

Diagram for KUDC10IXBL9
