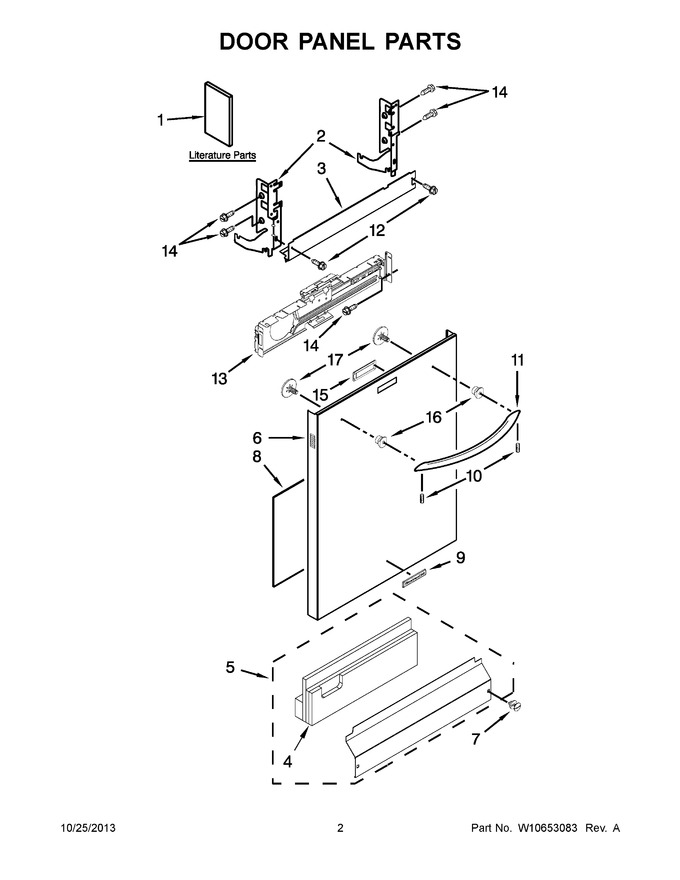

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10321879 | Tech Sheet/french |
|
- | |||||
| 1 | W10321613 | Accessory Kit, Water Softener |
|
- | |||||
| 1 | W10321621 | Instructions, Installation |
|
- | |||||
| 1 | W10638771 | Energy Guide |
|
- | |||||
| 1 | W10596234 | Use & Care Guide |
|
- | |||||
| 1 | W10321878 | Tech Sheet/english |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Barrier, Vapor Assembly (Replaces: W10321449) |
|
Immediately | $ 32.88 | ||||
| 4 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 5 | WPW10526114 | Access Panel (black) (Replaces: W10526114) |
|
Immediately | $ 149.53 | ||||
| 6 | WPW10195869 | Panel, Full Front (includes Items 9, 15, 16 & 17) (stainless) (Replaces: W10195869) |
|
$ 391.97 | |||||
| 7 | WPW10503548 | Fastener (black) (Replaces: W10503548) |
|
Immediately | $ 30.39 | ||||
| 8 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 9 | WPW10243391 | Nameplate (stainless) (Replaces: W10243391) |
|
$ 58.31 | |||||
| 10 | WPW10307614 | Screw (Replaces: W10307614) |
|
Immediately | $ 7.55 | ||||
| 11 | W10195738 | Handle Assembly (includes Item 11) (stainless) |
|
- | |||||
| 12 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 13 | W11116870 | Bracket, Control Panel (Replaces: W10194911) |
|
$ 89.95 | |||||
| 14 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 15 | W10457051 | Window, Display |
|
$ 67.21 | |||||
| 16 | W11157086 | Stud, Mounting (Replaces: W10195726) |
|
Immediately | $ 8.87 | ||||
| 17 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 |
