Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 N/P Liner (not A Serviceable Part) Appelez-nous -
2 W10550195 Louver Appelez-nous -
3 W10623513 Led Light Assembly, With Power Supply Appelez-nous -
4 W10649522 Led Light Assembly   (Replaces: W10623514) Appelez-nous -
5 WPW10276792 Reservoir   (Replaces: W10526445) Special Order $ 130.01

6 488280 Screw Appelez-nous -
7 W10599471 Air Diffuser Assembly Appelez-nous -
8 W10128735 Cover, Air Diffuser Appelez-nous -
9 2321286 Switch, Rocker Arm Appelez-nous -
10 W10141518 Screw Special Order $ 8.59


    View Diagram in Separate Window     Print Icon   Print Part List

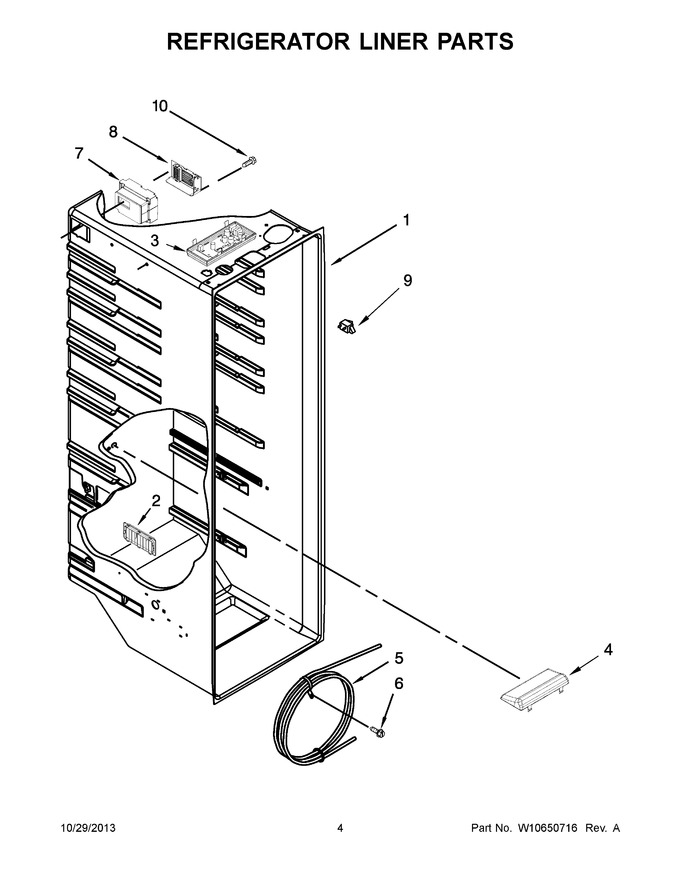

Diagram for 5WRS22FDBF00
