01 - Cover Sheet

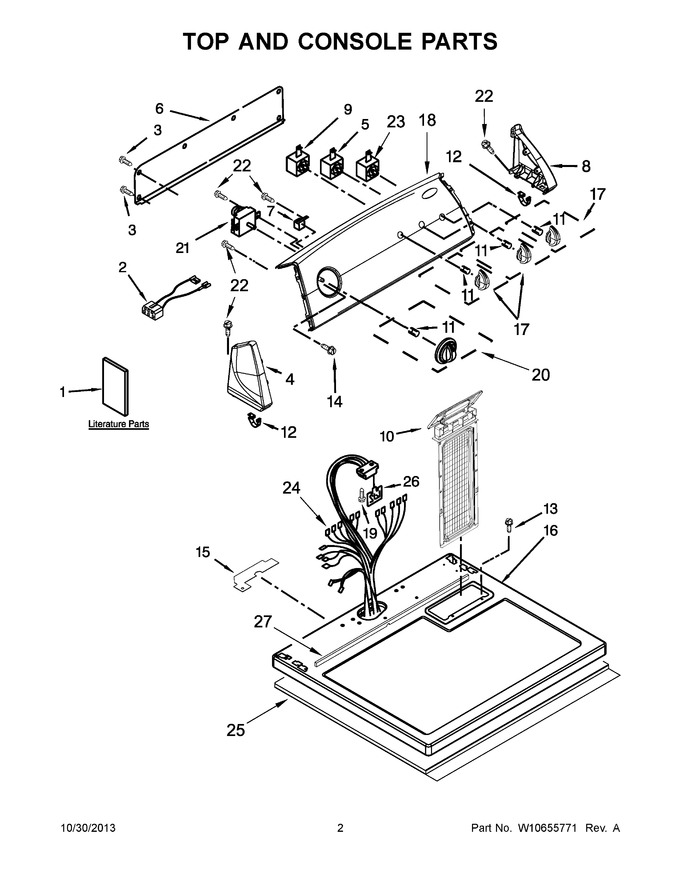

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329764 | Instructions, Installation |
|
- | |||||
| 2 | W10113080 | Wire, Jumper (buzzer) |
|
- | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP8565957 | End Cap (left) (white) (Replaces: 8566035) |
|
$ 58.28 | |||||
| 5 | WP3405156 | Switch, Wrinkle Guard (Replaces: 3405156) |
|
$ 137.51 | |||||
| 6 | W10103406 | Panel, Rear (console) |
|
$ 121.78 | |||||
| 7 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 8 | WP8565954 | End Cap (right) (white) (Replaces: 8566032) |
|
$ 59.26 | |||||
| 9 | WP8578354 | Switch, Rotary Temperature (Replaces: 8578354) |
|
Immediately | $ 229.00 | ||||
| 10 | W11778253 | Lint Screen (white) (Replaces: W10641634) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 15 | W10112603 | Seal, Harness |
|
- | |||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | W10034380 | Assembly, Control Knob (white/metallic) |
|
$ 25.06 | |||||
| 18 | W10410374 | Control Panel & Bracket Assembly |
|
- | |||||
| 19 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 20 | W10034750 | Assembly, Timer Knob (white/metallic) |
|
$ 28.27 | |||||
| 21 | WP8566184 | Assembly, Timer (60 Hz.) (Replaces: 8566184) |
|
Immediately | $ 263.09 | ||||
| 22 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 23 | WPW10117655 | Switch, Push To Start (Replaces: W10117655) |
|
Immediately | $ 77.04 | ||||
| 24 | W10071280 | Harness, Wiring (Replaces: 8576544) |
|
- | |||||
| 25 | W10123956 | Panel, Dampening |
|
- | |||||
| 26 | WPW10476828 | Control, Electronic (Replaces: W10476828) |
|
Immediately | $ 296.94 | ||||
| 27 | W10316616 | Seal, Foam |
|
$ 25.01 | |||||
| 1A | W10422711 | Use & Care Guide |
|
- | |||||
| 1B | 8578889 | Wiring Diagram |
|
- |
