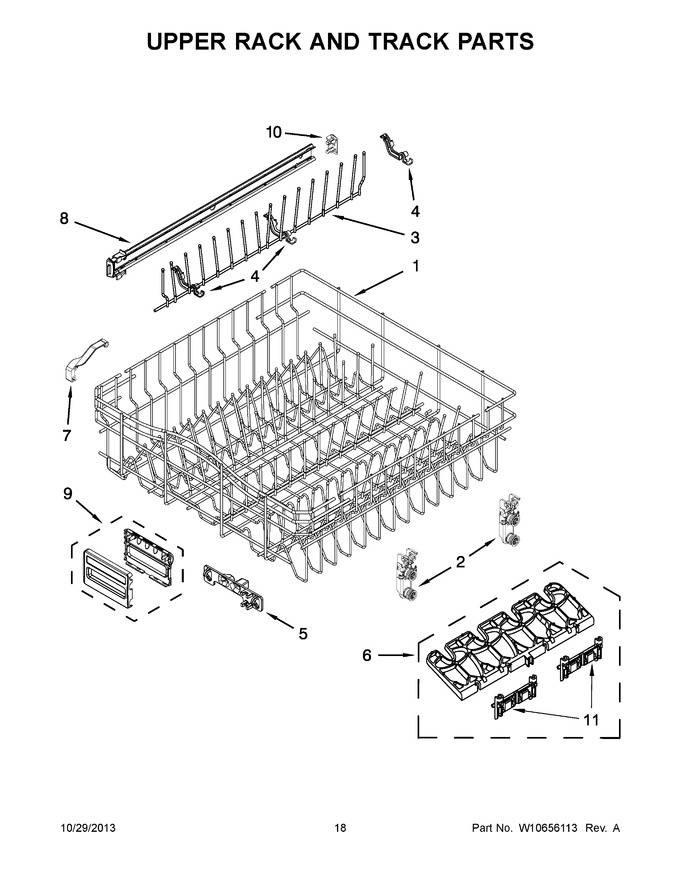

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11842830 | Dishrack, Upper (Replaces: W10312791) |
|
Immediately | $ 179.58 | ||||
| 2 | WPW10350401 | Mount, Wheel Fixed 2-position (Replaces: W10350401) |
|
Immediately | $ 71.41 | ||||
| 3 | W10727426 | Tine Row, Fold Down (Replaces: 8562030) |
|
Immediately | $ 85.10 | ||||
| 4 | WPW10082853 | Clip, Pivot (Replaces: W10082853) |
|
Immediately | $ 6.68 | ||||
| 5 | WP8539102 | Positioner, Dual Dishrack (Replaces: 8539102) |
|
$ 103.88 | |||||
| 6 | WPW10082649 | Cupshelf Assembly (Replaces: W10082649) |
|
Immediately | $ 109.45 | ||||
| 7 | WPW10267076 | Clip, Dispenser Guard (Replaces: W10267076) |
|
$ 31.56 | |||||
| 8 | WPW10195623 | Track Assembly (Replaces: W10195623) |
|
Immediately | $ 63.55 | ||||
| 9 | W11110542 | Handle, Dishrack (Replaces: W10282826) |
|
$ 129.58 | |||||
| 10 | WPW10195622 | Stop, Track (non-removable) (Replaces: W10195622) |
|
Immediately | $ 10.81 | ||||
| 11 | WPW10082848 | Clip-cup Shelf (Replaces: W10082848) |
|
Immediately | $ 8.27 |
