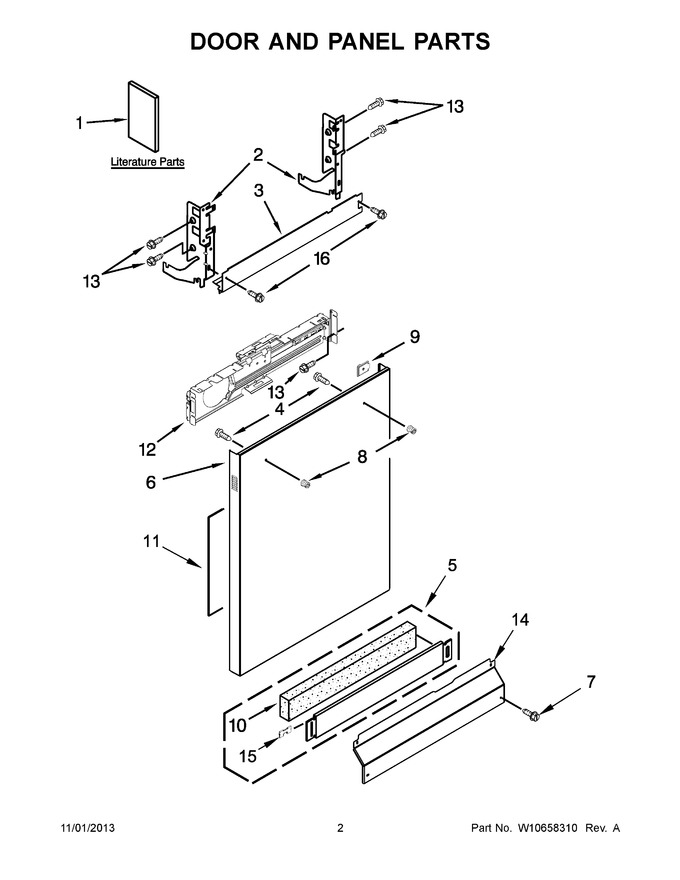

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Heater Parts


10 - Upper Rack And Track Parts


11 - Lower Rack Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10470347		Use & Care Guide (portuguese)		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
2	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
3	W10850371		Barrier, Vapor Assembly   (Replaces: W10321449)			Immediately	$ 32.88
4	W10826179		Screw   (Replaces: W10316572)			Immediately	$ 7.55
5	W10871196		Toe Panel (black)   (Replaces: W10205336)				$ 174.04
6	W10474113		Panel Front (includes Items 4, 8, & 9) (stainless)		Appelez-nous	-
7	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
8	W11157086		Stud, Mounting   (Replaces: W10195726)			Immediately	$ 8.87
9	W10319007		Light Pipe				$ 72.00
10	W10831329		Insulation, Toe Panel   (Replaces: W10073540)			Immediately	$ 43.30
11	WPW10073520		Insulation, Door   (Replaces: W10073520)				$ 96.23
12	W11116870		Bracket, Control Panel   (Replaces: W10194911)				$ 89.95
13	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
14	W11763736		Access Panel (black)   (Replaces: W10195777)			Immediately	$ 42.25
15	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 11.21
16	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
