Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13092233WQ Door, Freezer (includes Insulation) (white) Appelez-nous -
1 13092233BQ Door, Freezer (includes Insulation) (black) Appelez-nous -
1 13092234SQ Door, Freezer (includes Insulation) (stainless) Appelez-nous -
2 WPW10314515 Handle (white)   (Replaces: W10119642) Special Order $ 238.49

2 W10119643 Handle (black) Appelez-nous -
2 WPW10314517K Handle (stainless)   (Replaces: W10119644) Special Order $ 243.37

3 WP67006113 Mount, Handle   (Replaces: 67006113) In-Stock Immediately $ 12.56

4 W10443319 Gasket, Door (white)   (Replaces: W10133249) Special Order $ 281.76

4 W10436252 Gasket, Door (black)   (Replaces: W10131754) In-Stock Immediately $ 362.28

4 W10443320 Gasket, Door (grey)   (Replaces: W10164042) In-Stock Immediately $ 125.25

5 67006901 Screw In-Stock Immediately $ 9.49

7 10712401 Plug, Button (white) Special Order $ 7.79

7 67004838 Plug, Button (black) Special Order $ 11.21


    View Diagram in Separate Window     Print Icon   Print Part List

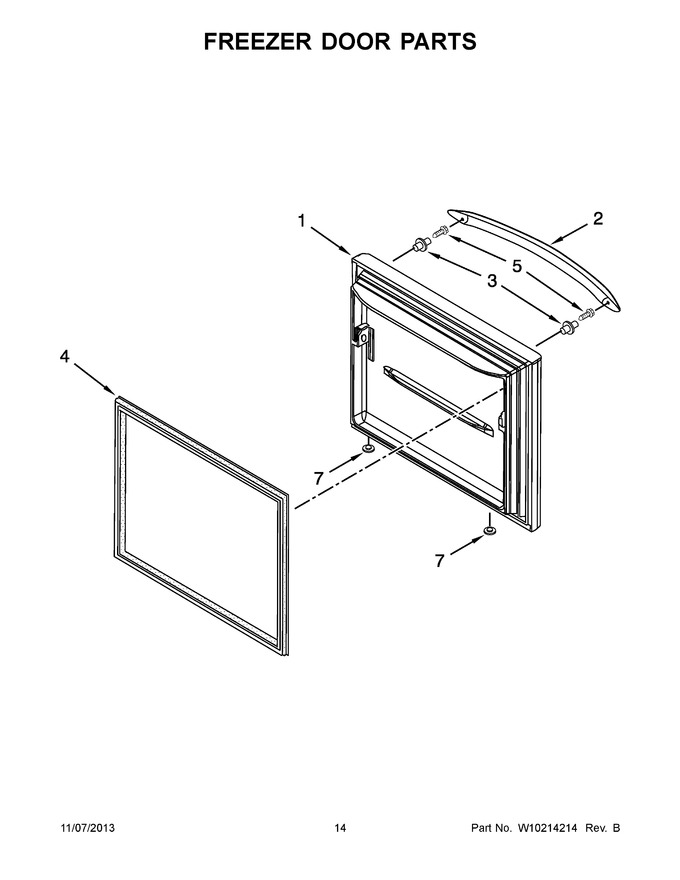

Diagram for KBFS25EVMS0
