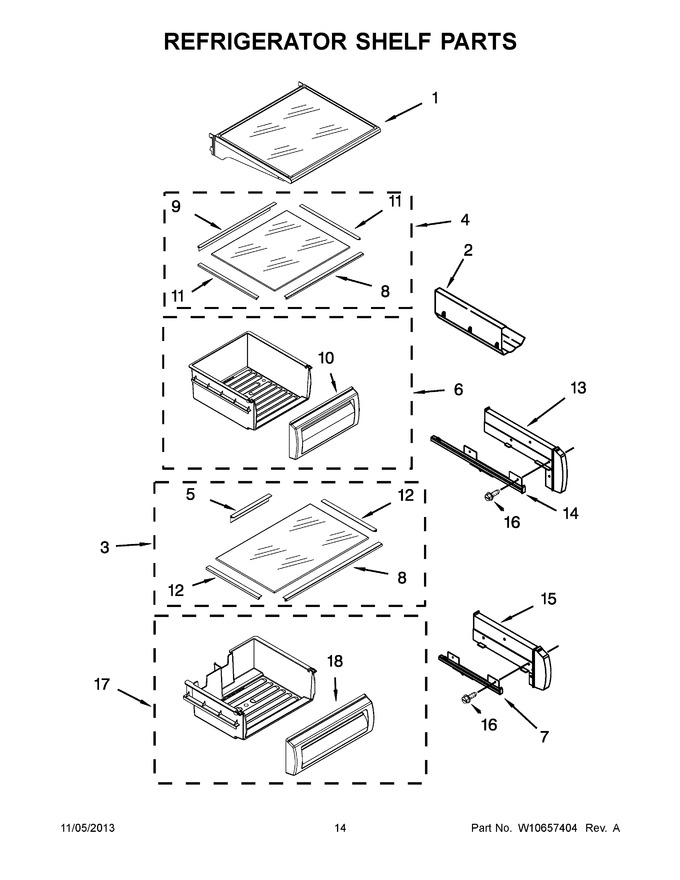

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
2222592 |
|
Assembly, Shelf |
|
Appelez-nous
|
- |
|
|
|
| 2 |
W10777924 |
 |
Rack, Wine (Replaces: 2179404) |
|
|
|
$ 24.78 |
|
|
| 3 |
2302842 |
|
Assembly, Meat Pan Cover |
|
Appelez-nous
|
- |
|
|
|
| 4 |
W10849998 |
 |
Assembly, Crisper Cover (Replaces: 2302835) |
|
|
|
$ 284.27 |
|
|
| 5 |
2257582 |
|
Trim, Glass (rear) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
W10407624 |
|
Pan, Crisper |
|
|
|
$ 177.44 |
|
|
| 7 |
2302954 |
|
Slide, Meat Pan (left Hand) |
|
|
|
$ 343.49 |
|
|
| 7 |
2302955 |
|
Slide, Meat Pan (right Hand) |
|
|
|
$ 343.18 |
|
|
| 8 |
2302831 |
|
Trim, Glass (front) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
2256254 |
|
Trim, Glass (rear) |
|
Appelez-nous
|
- |
|
|
|
| 10 |
2256248 |
|
Front, Crisper Pan |
|
Appelez-nous
|
- |
|
|
|
| 11 |
2252255 |
|
Trim, Side Glass Crisper |
|
Appelez-nous
|
- |
|
|
|
| 12 |
2256250 |
|
Trim, Side Glass Meat Pan |
|
Appelez-nous
|
- |
|
|
|
| 13 |
2256223 |
|
Spacer, Crisper (left Hand) |
|
|
|
$ 84.49 |
|
|
| 13 |
2256222 |
|
Spacer, Crisper (right Hand) |
|
|
|
$ 89.24 |
|
|
| 14 |
2302957 |
|
Slide, Crisper (right Hand) |
|
|
|
$ 228.33 |
|
|
| 14 |
2302956 |
|
Slide, Crisper (left Hand) |
|
|
|
$ 298.73 |
|
|
| 15 |
2256243 |
|
Spacer, Meat Pan (left Hand) |
|
|
|
$ 83.04 |
|
|
| 15 |
2256244 |
|
Spacer, Meat Pan (right Hand) |
|
|
|
$ 103.70 |
|
|
| 16 |
WP8533928 |
 |
Screw (stainless) (Replaces: 8533928) |
|
|
Immediately |
$ 8.26 |
|
|
| 16 |
W11830745 |
|
Screw (stainless) (Replaces: 8533929) |
|
Appelez-nous
|
- |
|
|
|
| 17 |
W10407627 |
|
Assembly, Meat Pan |
|
|
|
$ 175.77 |
|
|
| 18 |
WP2256366 |
|
Front, Meat Pan (Replaces: 2256366) |
|
|
|
$ 190.12 |
|
|
