SELECT A DIAGRAM
01 - Cover Sheet

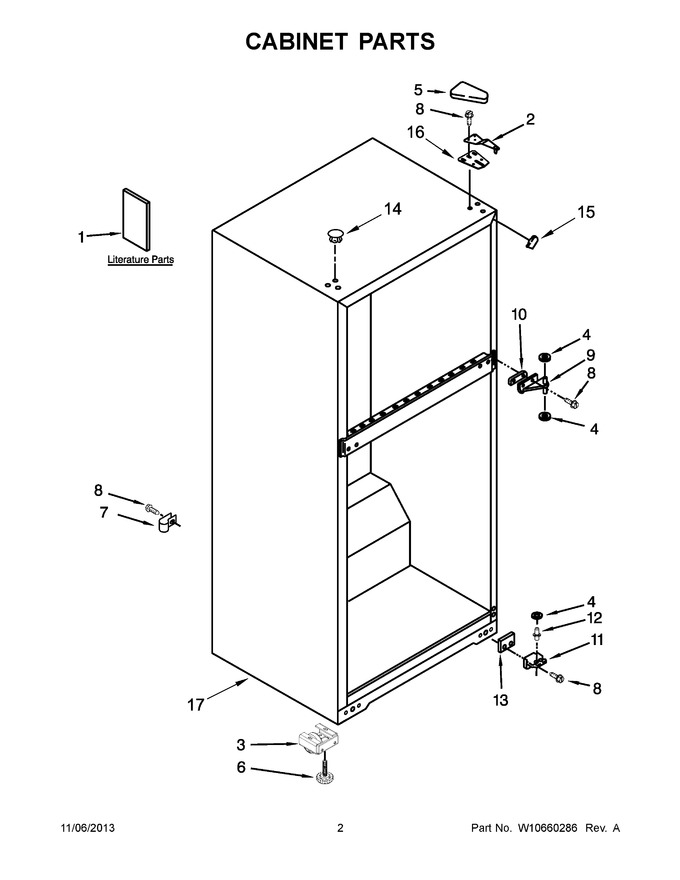

02 - Cabinet Parts
03 - Door Parts
04 - Liner Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10488103 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10187754 | Energy Label |
|
- | |||||
| 1 | 2262175 | Use & Care Guide |
|
- | |||||
| 2 | WP2261963 | Top Hinge Assembly (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Assembly, Roller (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP487802 | Washer (plastic) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 5 | WP2213360 | Cover, Hinge (white) (Replaces: 2213360) |
|
$ 20.19 | |||||
| 6 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 7 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 8 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 9 | WP2166037 | Hinge Assembly, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 10 | 2166043 | Shim, Center Hinge (white) |
|
$ 69.76 | |||||
| 11 | WP2325482 | Hinge, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 12 | WP2325483 | Pin, Bottom Hinge (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 13 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 8.16 | ||||
| 14 | WPW10520304 | Hole Plug (white) (Replaces: W10520304) |
|
Immediately | $ 19.22 | ||||
| 15 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 8.09 | |||||
| 16 | W11169703 | Shim, Hinge Top (white) (Replaces: 2221885) |
|
$ 15.79 | |||||
| 17 | N/P | Cabinet (not A Serviceable Part) |
|
- |
