SELECT A DIAGRAM

01 - Cover Sheet

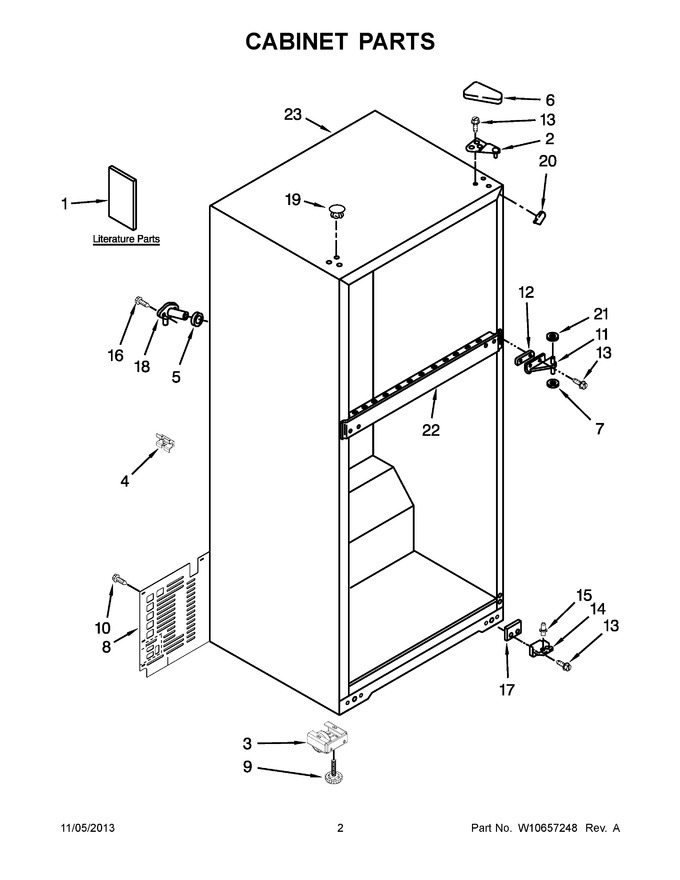

02 - Cabinet Parts


03 - Door Parts


04 - Liner Parts


05 - Unit Parts


06 - Icemaker Parts


07 - Shelf Parts


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Repair Manuals				$ 30.30
1	W10402929		Service & Wiring Sheet		Appelez-nous	-
1	2316016		Use & Care Guide		Appelez-nous	-
1	628370		Icemaker Service Sheet		Appelez-nous	-
1	W10594982		Energy Guide		Appelez-nous	-
2	WP2261963		Top Hinge Assembly   (Replaces: 2261963)			Immediately	$ 99.45
3	WPW10142530		Assembly, Roller   (Replaces: W10142530)			Immediately	$ 118.10
4	2266506		Spacer, Back				$ 14.39
5	WP1106508		Gasket, Seal   (Replaces: 1106508)			Immediately	$ 10.43
6	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 19.12
7	WP487576		Washer, Plastic   (Replaces: 487576)			Immediately	$ 9.88
8	W11307292		Cover, Unit   (Replaces: W10626437)				$ 49.82
9	WPW10133299		Leveler   (Replaces: W10133299)				$ 12.35
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
11	WP2166037		Hinge Assembly, Center   (Replaces: 2166086)				$ 85.08
12	2215385		Shim, Hinge Center (black)				$ 91.34
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	WP2325482		Hinge, Bottom   (Replaces: 2325482)			Immediately	$ 80.00
15	WP2325483		Pin, Bottom Hinge   (Replaces: 2325483)			Immediately	$ 7.55
16	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 8.28
17	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 8.16
18	WPW10601149		Fitting, Water Tube   (Replaces: W10601149)			Immediately	$ 8.56
19	WPW10520305		Hole Plug (black)   (Replaces: W10520305)				$ 19.18
20	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.98
21	WP489467		Washer, Plastic   (Replaces: 489341)			Immediately	$ 11.42
22	N/P		Rail, Center (not Serviced)		Appelez-nous	-
23	N/P		Cabinet (not Serviced)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
