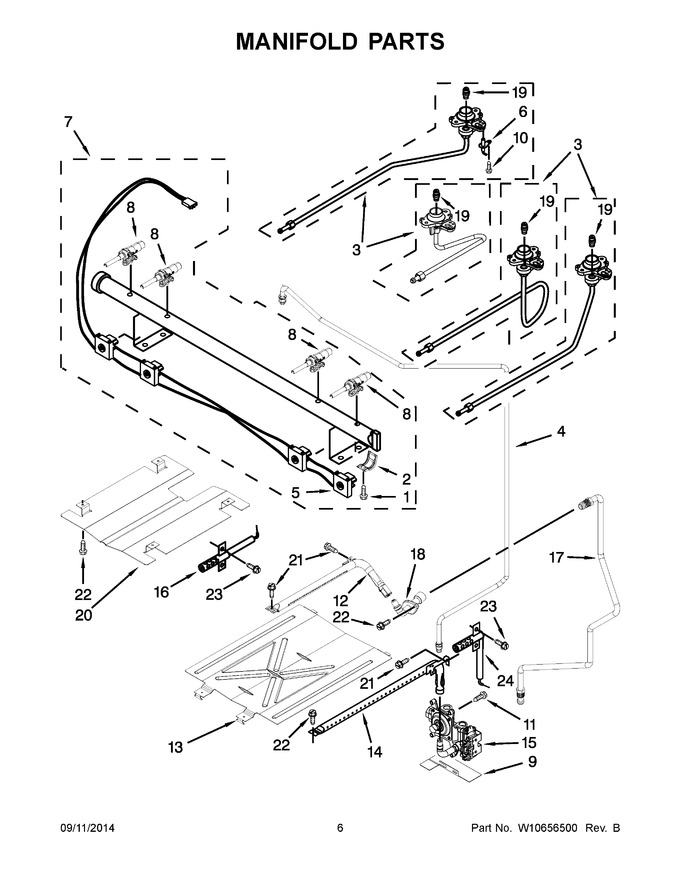

04 - Manifold Parts
05 - Door Parts
06 - Chassis Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 7.32 | |||||
| 2 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 22.75 | |||||
| 3 | W10473929 | Assembly, Orifice Holder (9.5k) (left Rear) |
|
$ 83.40 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 159.35 | |||||
| 5 | WPW10295998 | Harness, Manifold (Replaces: W10295998) |
|
$ 228.23 | |||||
| 6 | WPW10515459 | Electrode (Replaces: W10515459) |
|
Immediately | $ 43.77 | ||||
| 7 | W10314242 | Assembly, Manifold |
|
$ 328.05 | |||||
| 8 | WPW10279614 | Valve, Gas (9.5k) (left Front, Right Front & Left Rear) (Replaces: W10279614) |
|
$ 279.81 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 239.36 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 253.52 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 226.07 | |||||
| 15 | WPW10602001 | Regulator (Replaces: W10602001) |
|
$ 340.97 | |||||
| 16 | WP8054129 | Electrode, Broil (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 194.54 | |||||
| 18 | W10592836 | Fitting, Broiler |
|
$ 108.26 | |||||
| 19 | WPW10170508 | Orifice (9.5k) (right Front And Left Rear) (Replaces: W10170508) |
|
$ 95.21 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 23 | W11684507 | Screw (Replaces: 3196385) |
|
$ 14.27 | |||||
| 24 | WP9758079 | Electrode, Bake (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| 19A | WPW10185023 | Orifice (12.5k) (left Front) (Replaces: W10185023) |
|
$ 94.06 | |||||
| 19B | WPW10170506 | Orifice (5k) (right Rear) (Replaces: W10170506) |
|
$ 97.85 | |||||
| 3A | W10474161 | Assembly, Orifice Holder (13.5k) (left Front) |
|
- | |||||
| 3B | W10474169 | Assembly, Orifice Holder (9.5k) (right Front) |
|
- | |||||
| 3C | W10474163 | Assembly, Orifice Holder (6k) (right Rear) |
|
$ 82.87 | |||||
| 8A | WPW10247744 | Valve, Gas (5k) (right Rear) (Replaces: W10247744) |
|
$ 280.12 | |||||
| NI | W10758273 | Orifice, Lp Broil (Replaces: W10465080) |
|
$ 8.53 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | WPW10170531 | Spuds, Lp Gas (Replaces: W10170531) |
|
$ 107.14 | |||||
| NI | WPW10400495 | Orifice, Lp Bake (Replaces: W10400495) |
|
$ 94.32 |
