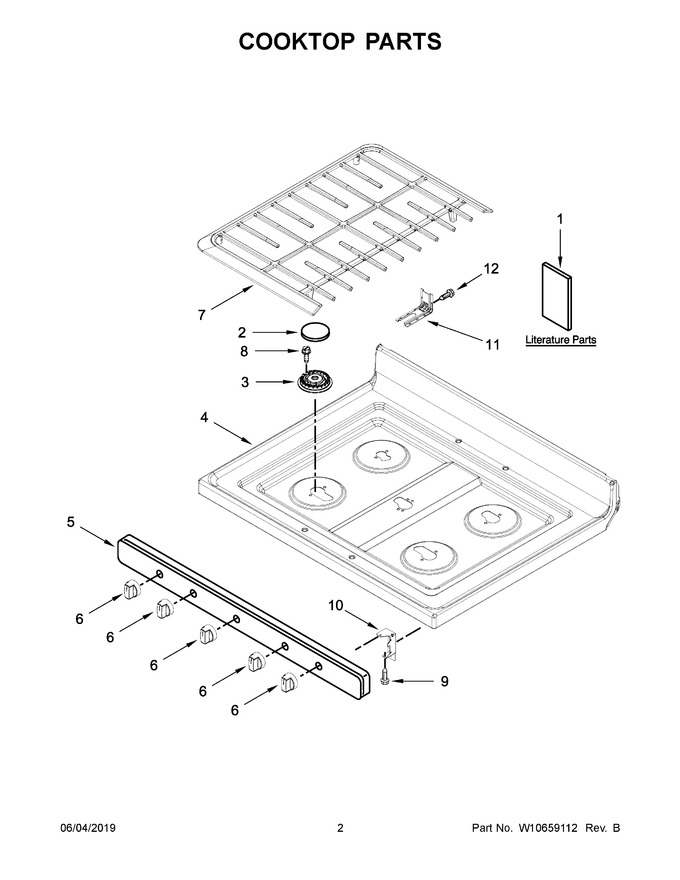

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Door Parts


07 - Drawer And Broiler Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10658550		Instructions, Installation		Appelez-nous	-
2	WPW10183374		Set, Burner Cap (black)   (Replaces: W10183374)				$ 200.18
3	WPW10515455		Assembly, Burner (17.5k) (left Front & Right Front)   (Replaces: W10515455)				$ 112.47
4	W10366729		Cooktop (white)		Appelez-nous	-
5	W10444452		Panel, Manifold (white)				$ 303.43
6	WPW10339443		Knob, Control (white)   (Replaces: W10339443)				$ 21.54
7	W11394363		Kit, Grate (black)   (Replaces: W10695047)				$ 357.58
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	8523249		Bracket, Manifold		Appelez-nous	-
11	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
12	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W10394387		Guide, Use And Care		Appelez-nous	-
1B	W10538793		Sheet, Tech (english)		Appelez-nous	-
3A	WPW10515454		Assembly, Burner (9.5k) (left Rear & Center)   (Replaces: W10515454)				$ 115.74
3B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 99.29
4A	W10366730		Cooktop (black)		Appelez-nous	-
5A	W10444453		Panel, Manifold (black)		Appelez-nous	-
6A	WPW10339442		Knob, Control (black)   (Replaces: W10339442)			Immediately	$ 18.09
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	WP3196174		Screw (grounding)   (Replaces: 3196174)			Immediately	$ 8.44
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10625534		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 216.55
NI	W10738993		Harness, Dsi Cooktop				$ 184.61
NI	W10519920		Harness, Dsi Ground				$ 21.06
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
