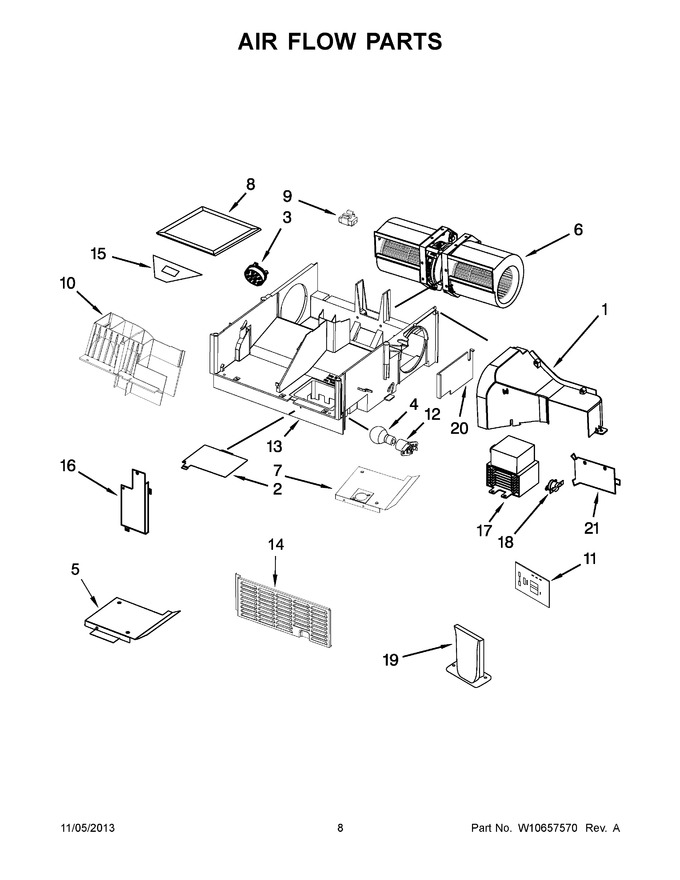

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Diffuser, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | 8206626 | Sensor, Humidity |
|
$ 84.84 | |||||
| 4 | 8206232A | Lamp 30 Watt (Replaces: W10598935) |
|
Immediately | $ 7.71 | ||||
| 5 | W10138797 | Air Guide |
|
$ 95.20 | |||||
| 6 | W11441128 | Motor, Fan (Replaces: W10439092) |
|
Immediately | $ 222.23 | ||||
| 7 | W10247762 | Air Guide |
|
- | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 20.21 | ||||
| 9 | W10596040 | Assembly, Mounting Nut |
|
Immediately | $ 8.30 | ||||
| 10 | WPW10448768 | Air Guide, Sealing Plate (Replaces: W10448768) |
|
$ 17.55 | |||||
| 11 | WPW10452535 | Filter, Noise Board (Replaces: W10452535) |
|
$ 52.13 | |||||
| 12 | WPW10210878 | Holder, Lamp Cavity (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 13 | W10448773 | Air Guide, Base Plate |
|
$ 148.07 | |||||
| 14 | W10342991 | Shield, Finger |
|
$ 169.83 | |||||
| 15 | W10139750 | Socket, Motor Wire |
|
- | |||||
| 16 | W10247764 | Cover, Cavity Air Guide Inlet |
|
- | |||||
| 17 | W10754299 | Magnetron (Replaces: W10496310) |
|
Immediately | $ 231.21 | ||||
| 18 | W10491433 | Thermostat, Magnetron |
|
$ 91.51 | |||||
| 19 | W11381953 | Plate, Waterproof (Replaces: W10269467) |
|
- | |||||
| 20 | W10269469 | Cover, Right Duct |
|
$ 83.08 | |||||
| 21 | W10313274 | Bracket, Mounting Noise Filter |
|
$ 32.32 |
