View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

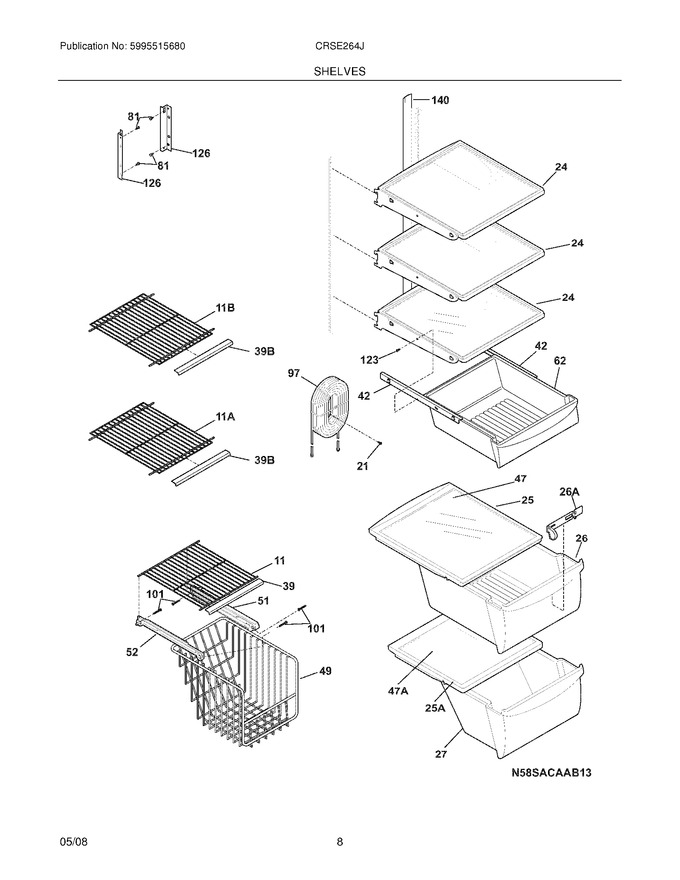

01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241657602 | Shelf,flip Up ,wire |
|
$ 96.06 | |||||
| 21 | 218843801 | Screw,hx Wshr Hd Sems ,8-15a X 0.625 (Replaces: 5304455658) |
|
$ 16.01 | |||||
| 24 | 240355270 | Shelf-``spill-safe``,fixed (Replaces: 240355208) |
|
$ 189.59 | |||||
| 25 | 240350702 | Cover-crisper Pan,upper |
|
Immediately | $ 46.58 | ||||
| 26 | 240351061 | Pan-crisper,upper (Replaces: 240351005) |
|
Immediately | $ 122.23 | ||||
| 27 | 240351207 | Pan-crisper,lower (Replaces: 240351206) |
|
$ 193.04 | |||||
| 39 | 240430706 | Trim-shelf,11.21`` ,front |
|
$ 81.85 | |||||
| 42 | 240356501 | Track,meat Pan Hanger ,rh |
|
Immediately | $ 63.00 | ||||
| 47 | 240350649 | Insert-pan Cover,glass (Replaces: 240350633) |
|
Immediately | $ 137.66 | ||||
| 49 | 240564401 | Basket-sliding |
|
Immediately | $ 176.56 | ||||
| 51 | 240343002 | Hanger-basket,rh |
|
$ 72.47 | |||||
| 52 | 240343102 | Hanger-basket,lh |
|
$ 77.52 | |||||
| 62 | 240342830 | Pan-meat (Replaces: 240342806) |
|
$ 95.54 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 15.75 | |||||
| 97 | 240545302 | Water Tank Assy,coiled Tubing ,rear Filter |
|
$ 311.85 | |||||
| 101 | 218493101 | Screw,hex Washer Head ,8-18ab X 1-3/4 |
|
$ 14.96 | |||||
| 123 | 215005101 | Screw,hanger/rlr Mtg ,8-10 X 7/16 |
|
$ 16.54 | |||||
| 126 | 241674401 | Channel,auger Mtg ,lh |
|
$ 52.76 | |||||
| 140 | 240430501 | Channel,wtr Tube Cover |
|
$ 108.68 | |||||
| 11A | 241657512 | Shelf,fixed ,freezer (Replaces: 241657502) |
|
$ 18.74 | |||||
| 11B | 241657514 | Shelf,fixed ,upper ,freezer (Replaces: 241657504) |
|
- | |||||
| 126A | 241674402 | Channel,auger Mtg ,rh |
|
$ 48.04 | |||||
| 25A | 240350903 | Cover-crisper Pan,lower (Replaces: 240350902) |
|
$ 102.21 | |||||
| 26A | 241595202 | Clip-slide,pan-crisper |
|
$ 20.22 | |||||
| 26A | 240362201 | Control-humidity |
|
$ 77.18 | |||||
| 39B | 240430702 | Trim-shelf,12.39`` ,front |
|
$ 21.89 | |||||
| 42A | 240365401 | Track,meat Pan Hanger ,lh |
|
Immediately | $ 56.95 | ||||
| 47A | 240350603 | Insert-pan Cover,glass |
|
Immediately | $ 128.36 | ||||
| NI | 240349801 | Clip-slide,pan-crisper |
|
$ 22.75 | |||||
| NI | 240362101 | Clip-slide,cover-crisper |
|
$ 52.25 | |||||
| NI | 241868012 | Energy Guide |
|
- |
