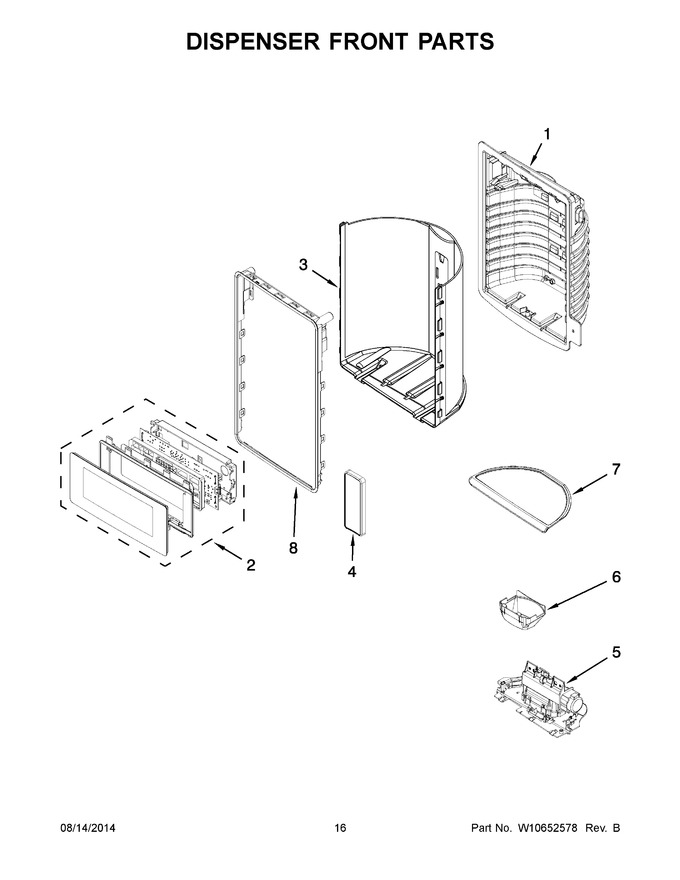

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10789393		Assembly, User Interface (silver)   (Replaces: W10590564)				$ 468.03
3	W10606653		Wall, Dispenser False (white)				$ 296.14
4	WPW10420671		Assembly, Pad (cast Grey)   (Replaces: W10420671)			Immediately	$ 289.81
5	WPW10577864		Assembly, Seperator   (Replaces: W10577864)			Immediately	$ 157.84
6	WPW10435760		Guide, Ice   (Replaces: W10435760)			Immediately	$ 23.94
7	W10606641		Tray, Drip (white)				$ 114.73
8	W10462439		Ring, Trim (black)				$ 38.46
2A	W10789392		Assembly, User Interface (black)   (Replaces: W10590562)				$ 403.60
3A	W10606657		Wall, Dispenser False (black)		Appelez-nous	-
3B	W10606648		Wall, Dispenser False (grey)				$ 251.77
4A	WPW10370592		Assembly, Pad (black)   (Replaces: W10370592)				$ 322.90
4B	W10853387		Assembly, Pad (tempest Grey (wrx988sibe01))   (Replaces: W10473007)				$ 290.31
7A	W10606643		Tray, Drip (black)				$ 29.37
7B	WPW10606639		Tray, Drip (grey)   (Replaces: W10606639)				$ 101.40
8A	WPW10402180		Ring, Trim (chrome)   (Replaces: W10402180)			Immediately	$ 60.92
