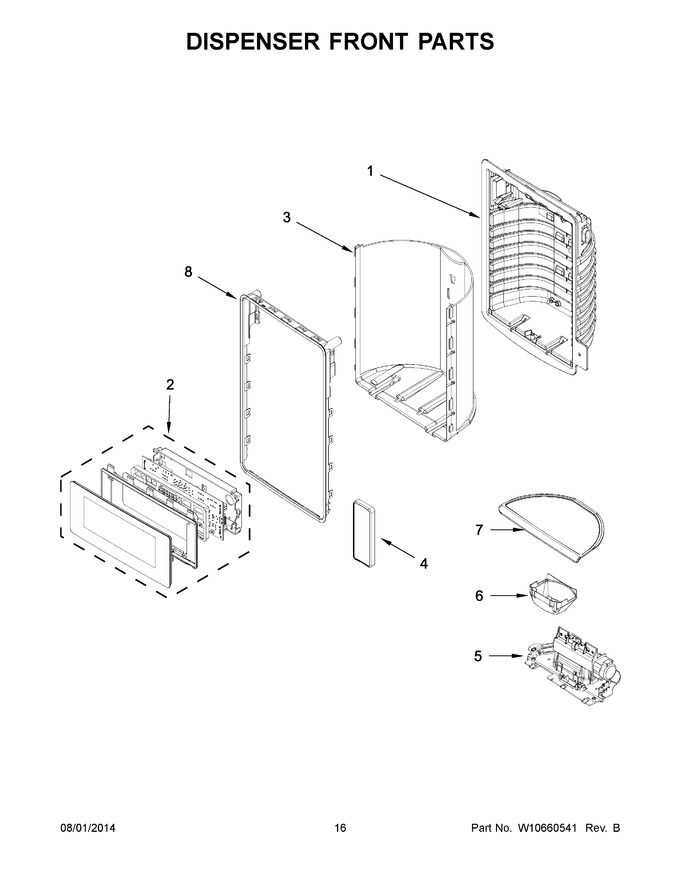

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W10861900		Assembly, User Interface (silver)   (Replaces: W10590567)				$ 457.58
3	W10606658		Wall, Dispenser False (white)		Appelez-nous	-
4	W11028219		Assembly, Pad (cast Grey)   (Replaces: W10473006)				$ 85.54
5	WPW10577864		Assembly, Seperator   (Replaces: W10577864)			Immediately	$ 157.84
6	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
7	W10606644		Tray, Drip (white)				$ 42.38
8	W10462438		Ring, Trim (white)				$ 38.57
2A	W10590566		Assembly, User Interface (black)		Appelez-nous	-
3A	W10606657		Wall, Dispenser False (black)		Appelez-nous	-
3B	W10606648		Wall, Dispenser False (grey)				$ 251.77
3C	W10606653		Wall, Dispenser False (white) (wrf989sdah*)				$ 296.14
4A	WPW10370592		Assembly, Pad (black)   (Replaces: W10370592)				$ 322.90
4B	W10853387		Assembly, Pad (tempest Grey)   (Replaces: W10473007)				$ 290.31
4C	WPW10420671		Assembly, Pad (cast Grey) (wrf989sdah*)   (Replaces: W10420671)			Immediately	$ 289.81
7A	W10606643		Tray, Drip (black)				$ 29.37
7B	WPW10606639		Tray, Drip (grey)   (Replaces: W10606639)				$ 101.40
7C	W10606641		Tray, Drip (white) (wrf989sdah*)				$ 114.73
8A	W10462438		Ring, Trim (black)				$ 38.57
8B	W10462438		Ring, Trim (chrome)				$ 38.57

    View Diagram in Separate Window       Print Part List
