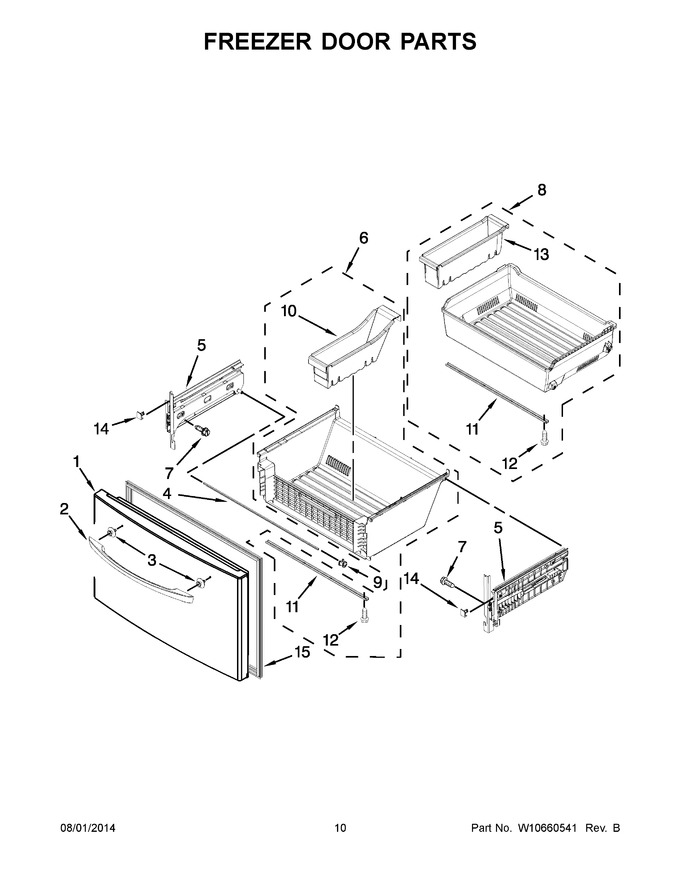

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10624495 | Door, Freezer (white) |
|
- | |||||
| 2 | W10548944 | Handle, Door (white) |
|
$ 242.67 | |||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 4 | WPW10503522 | Shaft (Replaces: W10503522) |
|
$ 98.10 | |||||
| 5 | W11668671 | Assembly, Bracket (left Hand) (Replaces: W10625067) |
|
Immediately | $ 529.03 | ||||
| 6 | W10594047 | Bin, Lower |
|
$ 307.51 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 8 | W10704090 | Bin, Upper (Replaces: W10491768) |
|
$ 181.92 | |||||
| 9 | W10852685 | Clip, Shaft (Replaces: W10248509) |
|
$ 11.39 | |||||
| 10 | W10507444 | Divider, Lower |
|
$ 62.14 | |||||
| 11 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 155.10 | ||||
| 12 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 13 | WPW10485654 | Divider, Upper (Replaces: W10485654) |
|
$ 66.81 | |||||
| 14 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 83.65 | |||||
| 15 | W10638486 | Gasket, Door (white) (Replaces: W10587578) |
|
$ 337.00 | |||||
| 14A | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 86.71 | |||||
| 15A | W10407215 | Gasket, Door (black) (Replaces: W10248748) |
|
$ 317.99 | |||||
| 15B | W10407216 | Gasket, Door (grey) (Replaces: W10248749) |
|
Immediately | $ 267.66 | ||||
| 1A | LW10341277 | Door, Freezer (black) (Replaces: W10341277) |
|
$ 1,183.40 | |||||
| 1B | W10341279 | Door, Freezer (stainless) |
|
- | |||||
| 1C | LW10417857 | Door, Freezer (sparkle Steel) (Replaces: W10417857) |
|
- | |||||
| 2A | W10719668 | Handle, Door (black) (Replaces: W10548943) |
|
$ 202.48 | |||||
| 2B | W10827046 | Handle, Door (stainless) (Replaces: W10557413N) |
|
Immediately | $ 232.68 | ||||
| 5A | W11668671 | Assembly, Bracket (right Hand) (Replaces: W10625068) |
|
Immediately | $ 529.03 |
