01 - Cover Sheet

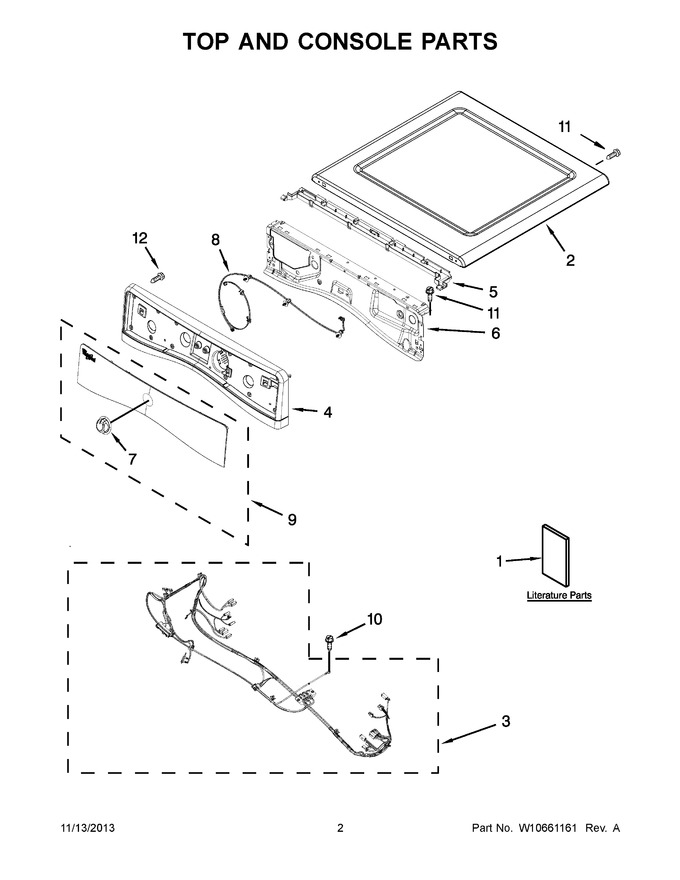

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10524376 | Owners Manual |
|
- | |||||
| 1 | W10097114 | Tech Sheet |
|
- | |||||
| 1 | W10504396 | Wiring Diagram |
|
- | |||||
| 1 | W10573707 | Installation Instructions |
|
- | |||||
| 2 | WPW10460919 | Top (chrome Shadow) (Replaces: W10460919) |
|
$ 289.19 | |||||
| 2 | WPW10316282 | Top (silver) (Replaces: W10316282) |
|
$ 329.70 | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 308.50 | |||||
| 3 | W10526660 | Harness, Main |
|
$ 153.45 | |||||
| 4 | WPW10463687 | Panel, Console (chrome Shadow) (Replaces: W10463687) |
|
$ 280.06 | |||||
| 4 | W10504272 | Panel, Console (silver) |
|
$ 316.67 | |||||
| 4 | WPW10446407 | Panel, Console (white) (Replaces: W10446407) |
|
$ 178.74 | |||||
| 5 | WPW10653575 | Water Channel (Replaces: W10636058) |
|
$ 86.61 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 75.41 | |||||
| 7 | W10391535 | Assembly, Knob |
|
$ 25.18 | |||||
| 8 | W10837344 | Cable, User Interface (Replaces: W10540653) |
|
$ 32.01 | |||||
| 9 | WPW10446445 | Iml Assembly (white) (Replaces: W10446445) |
|
$ 547.62 | |||||
| 9 | WPW10446446 | Iml Assembly (chrome Shadow) (Replaces: W10446446) |
|
$ 736.54 | |||||
| 9 | W10446448 | Iml Assembly (silver) |
|
$ 551.96 | |||||
| 10 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 11 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 12 | W10489172 | Screw |
|
$ 11.41 |
