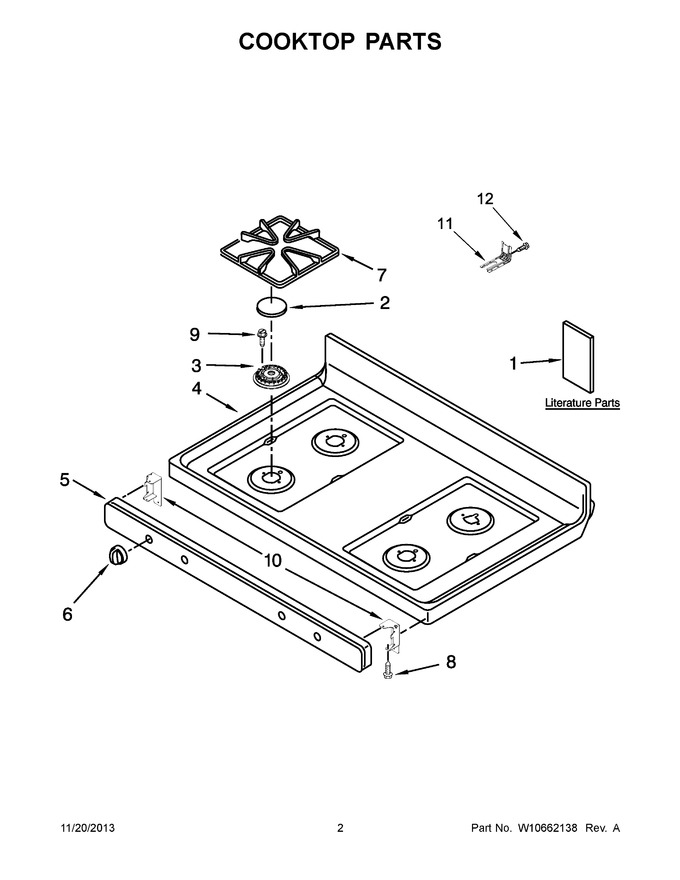

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10538794 | Tech Sheet (french) |
|
- | |||||
| 1 | W10572542 | Use And Care Guide |
|
- | |||||
| 1 | W10538793 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10526974 | Installation Instructions |
|
- | |||||
| 2 | WPW10165809 | Set, Burner Cap (wetstone) (Replaces: W10165809) |
|
$ 138.32 | |||||
| 2 | WPW10170554 | Set, Burner Cap (black) (Replaces: W10170554) |
|
$ 140.26 | |||||
| 3 | WPW10515454 | Burner Head, Semi (9.5k) (right Front & Left Rear) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 3 | WPW10515453 | Burner Head, Auxi (5k) (right Rear) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 3 | WPW10515452 | Burner Head, Rapid (12k) (left Front) (Replaces: W10515452) |
|
$ 88.90 | |||||
| 4 | 8272251 | Cooktop (white) |
|
- | |||||
| 4 | 8272253 | Cooktop (black) |
|
- | |||||
| 5 | 8523855 | Panel, Manifold (black) |
|
$ 176.18 | |||||
| 5 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 290.58 | |||||
| 6 | WP8273103 | Knob, Control (black) (Replaces: 8273103) |
|
Immediately | $ 16.85 | ||||
| 6 | WP8273104 | Knob, Control (white) (Replaces: 8273104) |
|
Immediately | $ 17.99 | ||||
| 7 | WPW10268483 | Grate, Set (black) (Replaces: 8053580) |
|
$ 140.02 | |||||
| 7 | W10166294 | Grate, Set (wetstone) |
|
$ 145.47 | |||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | 8523249 | Bracket, Manifold |
|
- | |||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 12 | WP7101P485-60 | Screw, Anti Tip (Replaces: 7101P485-60) |
|
$ 30.72 |
