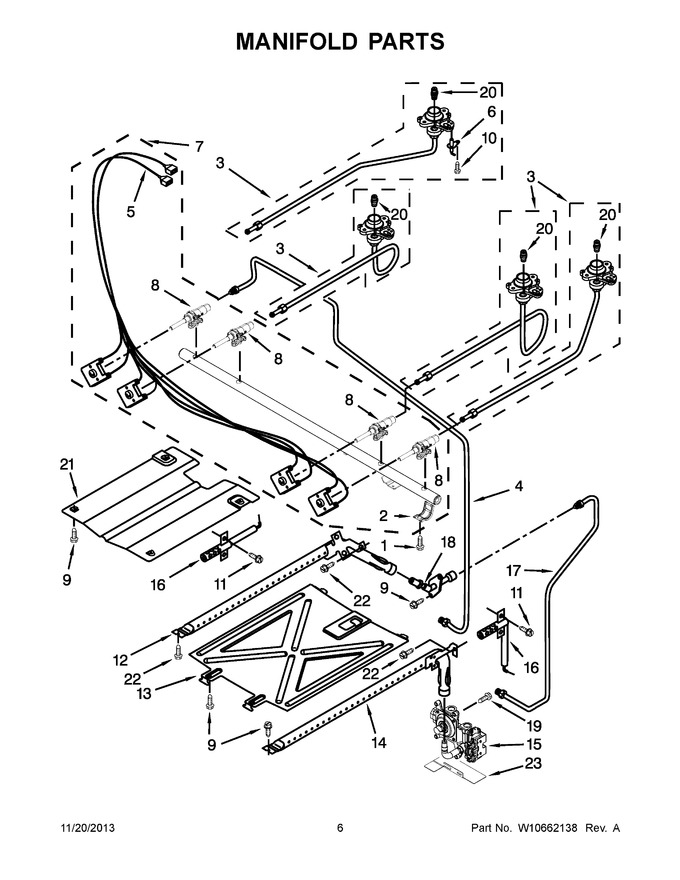

04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10949105		Bracket, Saddle Valve   (Replaces: W10295996)				$ 22.75
3	W10474154		Orifice Holder Assembly (12k) (left Front)				$ 82.51
3	W10474163		Orifice Holder Assembly (6k) (right Rear)				$ 82.87
3	W10474169		Orifice Holder Assembly (9.5k) (right Front)		Appelez-nous	-
3	W10473929		Orifice Holder Assembly (9.5k) (left Rear)				$ 83.40
4	W11680399		Tubing (manifold To Regulator)   (Replaces: W10215439)				$ 159.35
5	WPW10295998		Harness, Manifold   (Replaces: W10295998)				$ 228.23
6	WPW10515459		Electrode   (Replaces: W10515459)			Immediately	$ 43.77
7	W10314242		Assembly, Manifold				$ 328.05
8	WPW10247744		Valve, Gas (5k) (right Rear)   (Replaces: W10247744)				$ 280.12
8	WPW10279614		Valve, Gas (9.5k) (left Rear & Left Front & Right Front)   (Replaces: W10279614)				$ 279.81
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
11	W11684507		Screw   (Replaces: 3196385)				$ 14.27
12	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 239.36
13	WPW10184491		Spreader, Flame (oven)   (Replaces: W10184491)				$ 253.52
14	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
15	WPW10602001		Regulator   (Replaces: W10602001)			Immediately	$ 340.97
16	WP9758079		Ignitor (electrode, Bake)   (Replaces: 9758079)			Immediately	$ 48.07
16	WP8054129		Ignitor (electrode, Broil)   (Replaces: 8054129)			Immediately	$ 137.14
17	W10420040		Tube, Broiler Supply				$ 194.54
18	W10340259		Fitting, Broiler		Appelez-nous	-
19	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
20	WPW10170508		Orifice (9.5k) (right Front & Left Rear)   (Replaces: W10170508)				$ 95.21
20	W10178934		Orifice (12k) (left Front)			Immediately	$ 103.60
20	WPW10170506		Orifice (5k) (right Rear)   (Replaces: W10170506)				$ 97.85
21	W10137062		Spreader, Flame (broiler)		Appelez-nous	-
22	3196265		Screw		Appelez-nous	-
23	W10224921		Bracket - Aegis		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated,		Appelez-nous	-
NI	WPW10170531		Spuds, Lp Gas   (Replaces: W10170531)				$ 107.14
NI	WPW10400498		Orifice, Lp Broil   (Replaces: W10400498)				$ 116.21
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
